Dake SB-25V Drill Press, 18" 120V

SKU: W315290 977600V
Write a Review
W315290 977600V
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

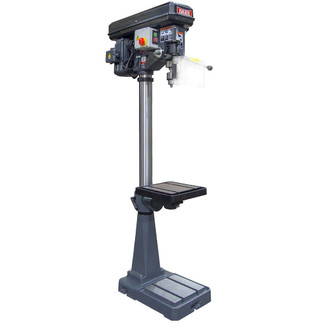

This floor model drill press from Dake has a machined table and sturdy cast base surface that includes T-slots for mounting and fixturing and reduces vibration. A knob on the frequency inverter easily adjusts the speed while drilling for concentrated torque. The LED indicator shows speed readout. A forward and reverse selector switch is available for tapping applications. Within the CE safety electrical package, you'll have an on/off switch, thermal overload and interlock safety switch for the belt cover. The locking handle hub has a convenient dial-in adjustment and easy-to-read scale for fast, accurate, repeatable depth setting changes. The handle also has 3 spring-return spokes for precise control and ergonomic operation. The large diameter spindle was designed for rigid drilling and has 4 bearing points for smooth operation. Unit also includes a massive, cast iron head and machined column.

Drill capacity: 1"
Motor: 110V, 1 Phase
Spindle taper: MT3
Working diameter: 18"
Number of speeds: Variable
Spindle speed range: 46-3,550 rpm
Spindle travel: 5"
Column diameter: 3-5/8"
Table depth: 13-3/4"
Table width: 13-3/4"
Base depth: 23-5/8"
Base width: 15"
Spindle to table: 28-3/8"
Spindle to base: 50"
Overall height: 71"
Weight: 397 lbs.

5/8" Keyed chuck
Drift for bit removal
Plexiglas chip and chuck guard
