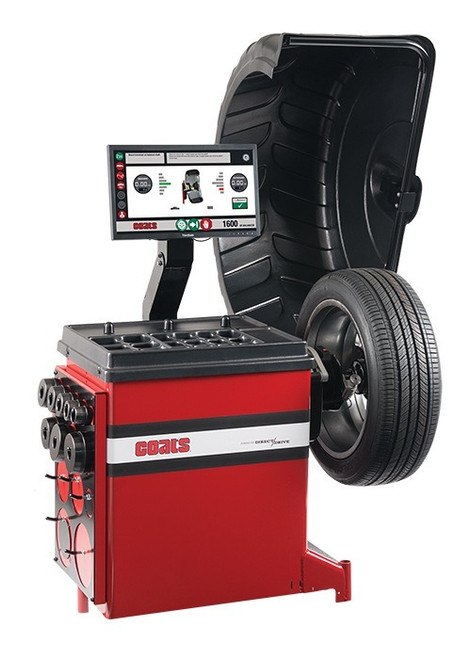

Coats 1600-3D Direct Drive Wheel Balancer

SKU: M471010 80016003D
Write a Review
$12,214.00
SKU:
M471010 80016003D
Availability:
Ships direct from manufacturer. Lead times may vary.
Product Type:
Tire and Wheel

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

The 1600-3D Direct Drive Wheel Balancer provides legendary reliability with state of the art capability.

Powered by Direct Drive
Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

ProBalance Technology™
A unique balancing algorithm and unbalance correction methodology that minimizes both static and couple unbalance.

Touchscreen
The weight location recognition system offers touch-free operation for 85% of wheel balances. The rugged, industrial grade touchscreen system is built to last and can be used while wearing gloves.

Stop, Lock & Index
Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.

3-Dimension Automatic Data Entry
The 1600 offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process.

Laser Guided Operation
Pinpoints the exact weight location, both radially and axially and eliminates trial and error.

Mfr.'s Warranty
3 Year Parts, 6 Months Labor

Balancing Modes: 8
Wheel Diameter Range: 8"-30"
Wheel Width Range: 2"-20"
Maximum Tire Diameter: Up to 44"
Maximum Tire Weight: 160 lbs.
Shaft Diameter: 40 mm
Interface Touchscreen: Automatic Data Entry Distance/Diameter/Width
Electrical Requirements: 220V, 1 Phase
Footprint: 57"W x 55"D x 75"H
Ship Weight: 650 lbs.

Includes 3 stud weight trays, 8 double-sided collets, calipers, premium wheel weight hammer, premium quicknut, small pressure cup and rubber lip, no-mar ring, spring, scraper and side shadow board.
