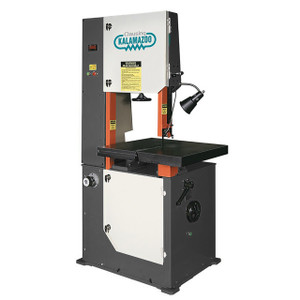

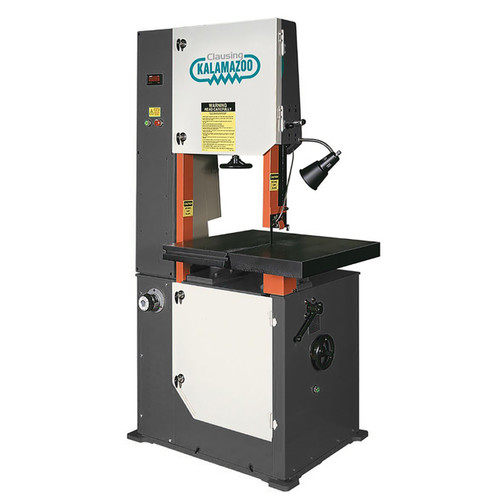

Clausing 20" Vertical Band Saw, Fixed Tilt Table, 230/460V

Description

Vertical Band Saw with 20" x 12" capacity throat, has speeds from 50-5200 SFPM is designed for volume production. 3HP Spindle motor. The 26-3/4" x 29" hydraulic moving table will tilt left 15° left and 15° right. 4 T-slots on the top surface for clamping material to the table, and 13" feeding travel.

• Magnetic starter with 110V control circuit and overload protection.
• Bonded rubber band wheels.
• 110V work light.
• Built-in air chip blower.
• Mfr.'s 2-year limited warranty.

Machine Style: Vertical Manual
Drive Type: Motor to Gearbox
Maximum Capacity Throat Width: 20"
Maximum Capacity Height: 12"
Work Table Size: 26-3/4" x 29"
Voltage: 230 or 460
Motor Horsepower: 3
Phase: 3
Coolant System: Chip Blower
Blade Width: 1/8" – 1"
Blade Length: 160.5"
Blade Speeds (SFPM): 50-5,200
Blade Guide Type: Chevron
Blade tension indicator: Yes
Blade speed indicator: Yes
Locking band wheel doors: Yes
Machine Size: 51" x 44" x 81"
Machine Weight: 1,390 lbs.

Includes
rip fence
4 blade guides
