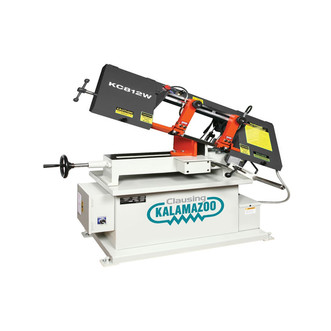

Clausing 8" x 12" Horizontal Band Saw

Description

Manual horizontal bandsaw comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level. Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.

• 4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Pan shaped base with built-in coolant and hydraulic system
• 2 additional bearings to support blade from the top
• Mfr.'s 2-year limited warranty

Machine Style: Manual
Drive Type: Step Pulley Drive
Style: Horizontal Wet Cut
Band Wheel Diameter: 11-1/2" flanged, cast iron
Blade: 1"W x .035"T x 107"L
Bed Height: 24.8"
Blade Speeds:) 59, 96, 155, 260 FPM
90° Cutting Capacity: Round 8", Square 7", Rectangular 7" x 14"
45° Cutting Capacity: Round 7-1/2", Square 6", Rectangular 6" x 9"
Width: 59"
Depth: 24.6"
Height (head-up): 63"
Height (head-down): 45"
Integral coolant system: Yes
Blade brush: Yes
Anti-slip hand wheel: Yes
Easy blade change: Yes
Shipping Dimensions: 58” x 30" x 48"
Weight: 515 lbs.
Shipping Weight: 640 lbs.
