Bosch Rotary Laser Level Kit

Description

Engineered for demanding outdoor leveling tasks, the 18V Rotary Laser Kit delivers high precision with convenient power flexibility. Use with either the 18V 4 Ah battery or C alkaline batteries (sold separately) for extended use or backup power on the jobsite. The simplified 1-button user interface streamlines setup and operation for easy use. IP66 rated, the laser is dust-tight and water-resistant for enhanced durability. It’s also tested to withstand a 5' tripod tip-over. Built for precision, the rotary laser has a working range of 1,000' and delivers accuracy up to ±1/16" at 100'. The expanded self-leveling range of ±15% helps deliver faster setup on uneven terrain and reduces the need for manual adjustments.

Power Supply: 18V
Compatible Batteries: BAT612, GBA18V-20, GBA18V-40, EXBA18V-40
Compatible Chargers: BC1880, GAL12V/18V-80, GAL18V6-80, GAX1218V-30, GAL18V-000 - GAL18V-999, EXAL18V-000 - EXAL18V-999
Working Range: 1,000'
Leveling Accuracy at 100': 1/16"
Self-leveling Range: ±15%
Max. Altitude: 16,404'
Rotational Speed: 600/min.
Relative air humidity, max.: 90%
Pollution Degree According To IEC 61010-14: 2
Laser Class: 2
Laser Type: <3.83mW, 500-540 nm
Divergence Of Laser Line: < 1.5 mrad (full angle)
Output Power (Rotating Beam): < 3.82 mW
Pulse Duration and Repetition Rate (Rotating Beam): < 1.2 ms, 600/min.
Output Power (Stationary Beam): < 1 mW
Recommended Laser Receiver: LR20
Tripod Mount: 5/8"
Degree of Protection: IP66
Operating Temperature: +14°F to +122°F
Storage Temperature: -4°F to +122°F
Recommended Ambient Charging Temp.: +32°F to +95°F
Laser Unit Size: 8.9" x 8.4" x 10.9"
Weight: 18 lbs.

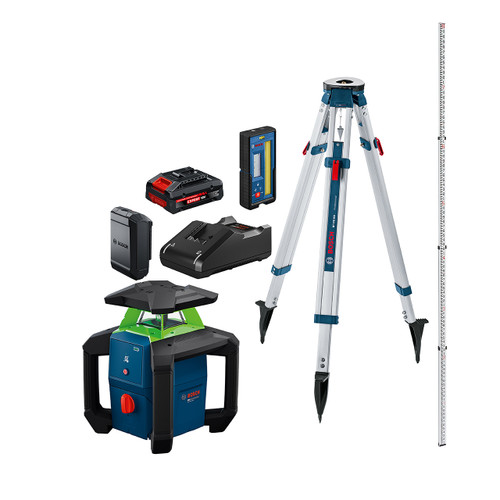

Includes
EXBA18V-40 18V 4 Ah Battery
GAL18V-40 Battery Charger
BA18-C Alkaline Adapter
LR20 Laser Receiver
BT170HD Tripod
GR8 Grade Rod
Molded Case
