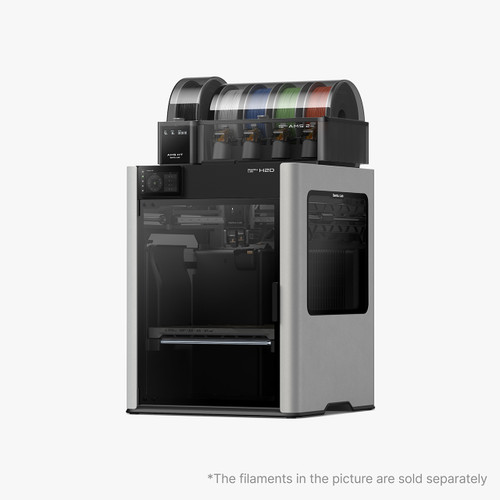

Bambu Lab H2D 3D Printer

Description

Bambu Lab H2D is a all-in-one desktop manufacturing system featuring an expansive 350 x 320 x 325 mm build volume, dual-nozzle multi-material extrusion, and modular toolhead upgrade paths for laser engraving and cutting.

• Dual-nozzle Multi-material 3D Printing
• Optional 10W/40W Laser and Cutting Module
• Closed-loop Servo Extruder
• 350°C Nozzle and 65°C Active Chamber Heating
• Mfr.'s 1-year warranty

Printing Technology: Fused Deposition Modeling
Chassis and Shell: Aluminum, Steel, Plastic, Glass
Laser Safety Windows: upgrade through Laser Upgrade Kit
Hotend: All Metal
Extruder Gear: Hardened Steel
Nozzle: Hardened Steel
Max Nozzle Temperature: 350°C
Included Nozzle Diameter: 0.4 mm
Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter: 1.75 mm
Extruder Motor: High-precision Permanent Magnet Synchronous Motor
Supported Build Plate Type: Textured PEI plate, Smooth PEI Plate
Max Heatbed Temperature: 120°C
Max Speed of Toolhead: 1000 mm/s
Max Acceleration of Toolhead: 20,000 mm/s²
Max Flow for Hotend: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280°C printing temperature)
Active Chamber Heating: Supported
Max Temperature: 65°C
Pre-filter Grade: G3
HEPA Filter Grade: H12
Activated Carbon Filter Type: Granulated Coconut Shell
Part Cooling Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Chamber Heat Circulation Fan: Closed Loop Control
Cooling Fan for Hotend: Closed Loop Control
Main Control Board Fan: Closed Loop Control
Chamber Exhaust Fan: Closed Loop Control
Supported Filament Type: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
Live View Camera: Built-in; 1920 x 1080
Nozzle Camera: Built-in; 1920 x 1080
Toolhead Camera: Built-in; 1920 x 1080
Door Sensor: Supported
Filament Run Out Sensor: Supported
Filament Tangle Sensor: Supported
Filament Odometry: Supported with AMS
Power Loss Recovery: Supported
Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power: 2200 W@220 V / 1320 W@110 V
Average Power: 1050 W@220 V / 1050 W@110 V
Touchscreen: 5" 720 x 1280 Touchscreen
Storage: Built-in 8 GB EMMC and USB Port
Control Interface: Touchscreen, mobile App, PC App
Neural Processing Unit: 2 TOPS
Slicer and Software: Bambu Studio, Bambu Suite, Bambu Handy Supports third-party slicers which export standard G-code, such
as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System: MacOS, Windows
Operating Frequency: 2412-2472 MHz, 5150-5850 MHz (FCC/CE) 2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol: IEEE 802.11 a/b/g/n
Cutting Area: 300 x 285 mm²
Drawing Area: 300 x 255 mm²
Supported Pen Diameter: 10.5 mm-12.5 mm
Cutting Mat Type: LightGrip and StrongGrip Cutting Mats
Blade Type: 45° x 0.35 mm
Blade Pressure Range: 50 gf-600 gf
Max Cutting Thickness: 0.5 mm
Blade and Pen Recognition: Supported
Cutting Mat Type Detection: Supported
Supported Image Type: Bitmap and Vector Images
Supported Material Type: Paper, vinyl, leather, and more
Dimensions: 492 x 514 x 626 mm³
Weight: 85 lbs.

Includes
H2D
Textured PEI Build Plate
Spool Holder
Accessory Box
Safety Key
