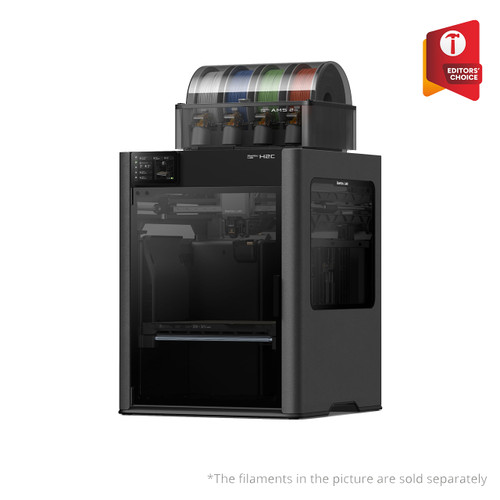

Bambu Lab H2C AMS Combo 3D Printer

Description

Bambu Lab H2C AMS Combo is an advanced multi-material FDM 3D printer featuring the Vortek hotend-swapping system, an included AMS 2 Pro, and a large build volume.

• Hotend Change Multi-material Printing
• Minimal Purge Waste Multi-Color Printing
• Precise & Fast Inductive Nozzle Heating
• Close-loop Servo Extruder
• Full Filament Path AI Error Detection
• Mfr.'s 1-year warranty

Printing Technology: Fused Deposition Modeling
Build Volume: Total Volume for Two Nozzles: 330 x 320 x 325 mm³
Chassis: Aluminum and Steel
Outer Frame: Plastic and Glass
Extruder Gear: Hardened Steel
Nozzle: Hardened Steel
Max Nozzle Temperature: 350°C
Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Cutter: Built-In
Filament Diameter: 1.75 mm
Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor
Build Plate Material: Flexible Steel Plate
Included Build Plate Type: Textured PEI Plate
Supported Build Plate Type: Textured PEI plate, Engineering Plate
Max Heatbed Temperature: 120°C
Max Speed of Toolhead: 1000 mm/s
Max Acceleration of Toolhead: 20,000 mm/s²
Max Flow for Hotend: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280°C printing temperature)
Active Chamber Heating: Supported
Max Temperature: 65°C
Pre-filter Grade: G3
HEPA Filter Grade: H12
Activated Carbon Filter Type:
VOC Filtration: Granulated Coconut Shell
Particulate Matter Filtration: Supported
Part Cooling Fan: Closed Loop Control
Cooling Fan for Hotend: Closed Loop Control
Main Control Board Fan: Closed Loop Control
Chamber Exhaust Fan: Closed Loop Control
Chamber Heat Circulation Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Toolhead Enhanced Cooling Fan: Closed Loop Control
Supported Filament Type: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;Carbon/Glass Fiber Reinforced PLA, PETG,
PA, PET, PC, ABS, ASA, PPA, PPS
Live View Camera: Built-in; 1920 x 1080
Nozzle Camera: Built-in; 1920 x 1080
BirdsEye Camera: Built-in; 3264 x 2448
Toolhead Camera: Built-in; 1920 x 1080
Door Sensor: Supported
Filament Run Out Sensor: Supported
Filament Tangle Sensor: Supported
Filament Odometry: Supported with AMS
Power Loss Recovery: Supported
Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power: 1800 W@220 V/1250 W@110 V
Typical Power: 200 W@220 V/200 W@110 V (Single Nozzle Printing PLA)
Working Temperature: 10°C - 30°C
Touchscreen: 5" 720 x 1280 Touchscreen
Storage: Built-in 8 GB EMMC and USB Port
Control Interface: Touchscreen, mobile App, PC App
Motion Controller: Dual-core Cortex-M4 and Single-core Cortex-M7
Application Processor: Quad-core 1.5 GHz ARM A7
Neural Processing Unit: 2 TOPS
Slicer: Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System: MacOS, Windows, Linux
Ethernet: Not Available
Wireless Network: Wi-Fi
Network Kill Switch: Not Available
Removable Network Module: Not Available
802.1X Network Access Control: Not Available
Operating Frequency: 2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE)2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol: IEEE 802.11 a/b/g/n
Physical Dimensions: 492 x 514 x 626 mm³
Weight: 108 lbs.

Includes
H2C AMS Combo
Build Plate
Spool Holder
four 0.4mm Induction Hotend
4-in-1 PTFE Adapter II
Accessory Box
AMS 2 Pro
