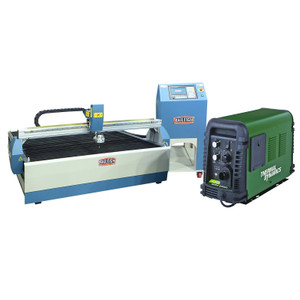

Baileigh CNC Plasma Table PT-44AH-W

SKU: M222630 PT-44AH-W
Write a Review
$20,838.00
SKU:
M222630 PT-44AH-W
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65:
Product Type:
Plasma Table

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

With variable height control, the PT-44AH-W makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame.

The PT-44AH-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.

Plasma torch systems sold separately.This CNC plasma cutting machine is compatible with automatic torches, but not manual ones.


Features

  • 59" x 59" working area.
  • Runs on 220-volt single-phase power, so it will work at most sites in North America.
  • Customers love the design software package (more details below), which takes just a few minutes to learn.
  • You can control the X, Y, and Z axes using the integrated panel on the podium.
  • Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.
  • Operators podium provides space for plasma power unit even while cutting.
  • If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting.
  • X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.
  • Fully enclosed wires and electronics prevent snags and tangles.
  • Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
  • Steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.
  • Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
  • Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.
  • Integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
  • To get started just:
    • Uncrate the machine.
    • Add a plasma system, power, and a clean, dry air supply.
    • Fill tank with water.
  • Mfr.'s lifetime technical support and 1-year parts warranty

Specifications

Table Style: Water
Working Table Size: 59" x 59" (1500 x 1500mm)
Controller Type: Touch Pad w/7" LCD Screen
Travel Speed: 315 Inches Per Minute (8000mm Per Minute)
Table Dimensions: 67" x 64" (1702 x 1626mm)
Z Axis Travel: 3.4" (86mm)
Table Load Capacity: 1" (25.4mm) Mild Steel at 48" x 48" (1220 x 1220mm)
Capacity: Depends on Plasma System Chosen (sold separately)
Table Height: 19.6" (500mm)
Drive: Stepper Motor
Power: 220V / 1-phase
Overall Size: 82.75" x 90" x 40" (2102 x 2286 x 1016mm)
Weight: 2,293 lbs. (shipping)

What's in the box

Includes PT-44AH-W Plasma Cutting Table and BobCAD-Cam Express Design Software.
