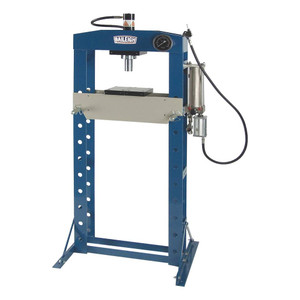

Baileigh 30-Ton H-Frame Hydraulic Press

SKU: M222591 HSP-30A
Write a Review
M222591 HSP-30A
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at

High-quality, inexpensive H-frame shop press maintains strength and accuracy with a fully-welded solid steel frame.

  • 21.653" working width
  • 5.9" cylinder stroke
  • Industrial-grade hydraulic parts ensure smooth, dependable use for years
  • Cylinder can move left and right within the frame, depending on orientation of the job
  • You have the option to work the HSP-30A manually, if you need finer control
  • Rigid, fully-welded steel main frame eliminates flexing at full force to deliver accurate results.
  • Mfr.'s 1-year parts warranty and lifetime technical support by phone

Piston Head Diameter: 2.375"
Movable Cylinder: Yes
Working Width: 21.653"
Maximum Capacity: 30 tons
Cylinder Stroke: 5.9"
Cylinder Diameter: 4.5"
Distance From Table To Ram: Min. 5.94" - Max. 40.59"
Power: Pneumatic / Manual
Weight: 430 lbs. shipping

Includes V-block set.
