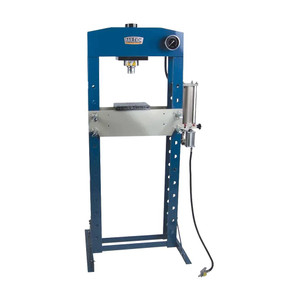

Baileigh 20-Ton H-Frame Hydraulic Press

SKU: M222590 HSP-20A
Write a Review
M222590 HSP-20A
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at

High-quality, inexpensive hydraulic pneumatic shop press maintains strength and accuracy with a fully-welded solid steel frame. Industrial-grade hydraulic components will provide years of reliable use.

  • Air-powered H-frame press
  • 20-ton capacity
  • 19.25" working width
  • 7.5" cylinder stroke
  • Adjustable table to fit a wide variety of applications
  • Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing
  • Mfr.'s 1-year parts warranty and lifetime technical support by phone

Piston Head Diameter: 2"
Movable Cylinder: Yes
Working Width: 19.25"
Maximum Capacity: 20 tons
Cylinder Stroke: 7.5"
Cylinder Diameter: 3"
Distance From Table To Ram: Min. 1.38" - Max. 35.91"
Power: Pneumatic / Manual
Weight: 300 lbs. shipping

Includes V-block set, pressure regulator and gauge.
