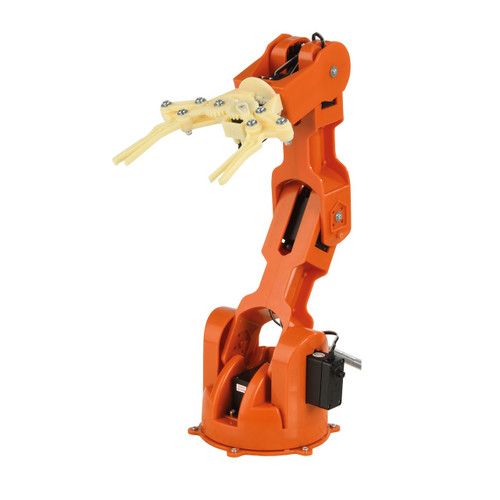

Arduino Tinkerkit Braccio Robotic Arm

SKU: M189949 T050000
Write a Review
M189949 T050000

Frequently Bought Together

Please choose options for all selected products


This fully-operational robotic arm, controlled via Arduino, can be assembled in several ways for multiple tasks such as moving objects. You can also attach a camera or solar panel.

Control Signal: PWM Analog
Torque @ 4.8V: 169.5 oz-in
@ 6.0V: 201.4 oz-in
Rotation Support: Dual Bearings
Gear Material: Metal
Rotation Range: 180°
Maximum operating distance range: 31.5"
Maximum Height: 20.47"
Base Width: 5.5"
Gripper Width: 35.43"
Cable length: 15.75"
Load Capacity: Maximum weight at 12.6" operating distance: .33 lbs.
Maximum weight at the minimal Braccio configuration: .88 lbs.
Weight: 3.80 lbs.

21 plastic parts
63 screws
16 flat washers
7 hexagon nuts
2 springs
2 SR 311 servo motors
4 SR 431 servo motors
Arduino compatible shield
power supply
Phillips screwdriver
spiral cable protection wrap

Arduino board sold separately.


Videos Hide Videos Show Videos
