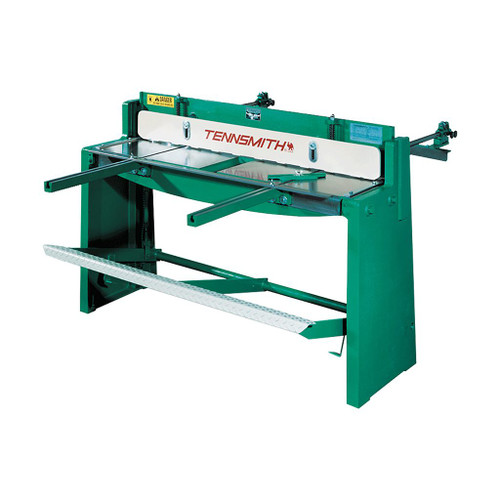

Tennsmith Sheet Metal Foot Shear, 45" x 80"SKU: M892805 36
- M892805 36
- Ships direct from manufacturer. Lead times may vary.
Frequently Bought Together
Total Price:Add to Cart
Please choose options for all selected products
Tennsmith’s squaring shears offer precision shearing and rugged construction at an affordable price. The shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron. The shear bed is machined and then surface ground to precision tolerances to ensure an accurate working surface.
These shears feature tri-action, high-carbon/high chromium (HCHC) steel blades. Both the upper and lower blades have a 2° edge relief and the lower blade has an additional 1° face relief for maximum material penetration with minimum effort. Tri-action blades help prevent material movement while shearing, prolonging blade life. Tennsmith shears have the most complete adjustment features of any sheet metal shear on the market. The lower shear blade is bed adjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated hold-down feet clamp the work
piece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. There is ample clearance between the hold-down feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives
highly accurate readings.
Maximum Shearing Capacity, Mild Steel 16 Gauge
Maximum Shearing Capacity, Stainless Steel 20 Gauge
Maximum Cutting Length 37"
Back Gauge Range 30"
Font Gauge Range 37"
Floor Space, Gauges in Position 45" x 80"
Dimensions, Less Gauges 46-1/4"L x 27"W x 42"H
Shipping Weight 700 lbs.
Includes back gauge, front extension arms with stop, bevel gauge and graduated side scales.
