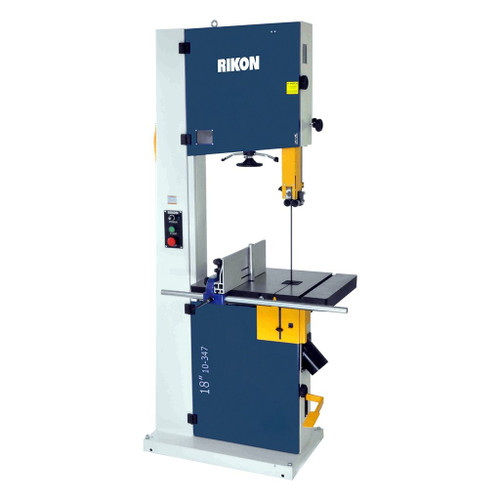

Rikon 18" 4HP Bandsaw, 220V

SKU: M694125 10-347
Write a Review
$3,857.00
SKU:
M694125 10-347
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Powerful 4HP motor with 19″ of re-saw capacity makes this bandsaw ideal for lots of heavy re-saw work. Under the top door, blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.

Professional features include:

  • spring-loaded tool-less guide system
  • cast iron table with quick adjust trunnion system
  • quick adjust 6" tall rip fence system
  • key-activated safety on/off switch
  • micro safety on/off switch activated door and foot brake

Motor: 4 HP
Motor Amps: 16
Motor: 220V, 60Hz, 1 Phase
Blade Speed: 4,920 ft./min.
Cutting Capacity Height: 19"
Cutting Capacity Width: 17-1/2"
Blade Width: 1/4" – 1-3/8"
Blade Length: 162"
Table Size: 25" x 19"
Table Left Tilt: -5°
Table Right Tilt: 45°
Table Miter Gauge T-Slot: 3/4" x 3/8"
Table Height to Floor: 33-1/2"
Table Fence Size: 18-3/4" x 1-3/4" x 6"
Wheel Material: Cast Iron
Blade Guide Type: Tool-less
Table Trunnion: Cast Iron
Dust Port: 2 @ 4"
Overall Base Size: 29-15/16" x 18-1/8" x 2-7/16"
Size: 39"W x 30"D x 84"H
Weight: 498 lbs.

Includes
Table
Rip Fence Rail
Fence Rail Hardware
Support Ring
Keys
Lower Door Blade Guard
Hardware
Push Stick
Dust Port
