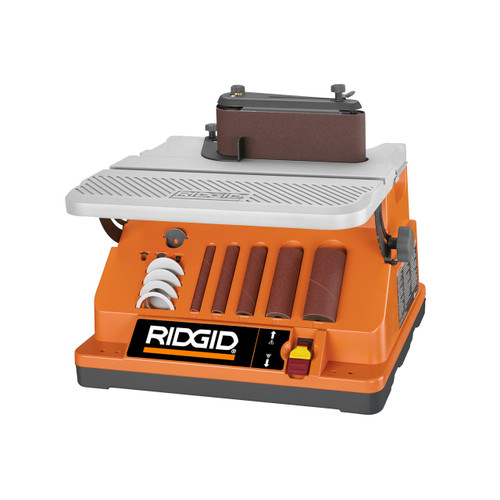

Ridgid Oscillating Edge Belt/Disc Sander

Description

Operates with rotary and oscillating motion to effortlessly achieve burn-free finishes on edges, contours, faces, inside curves, and outside curves. The tool-free conversion from belt to spindle helps quickly and easily make changes. Onboard accessory storage neatly holds the belt mechanism, washers, and more.

• Ball bearing construction for smooth operation and long life.
• Table tilts 0-48° with detents at most popular angles to sand bevel edges.
• Features Sof-Touch™ knobs, hose adapter with built-in sawdust collection port, and recesses in base for sawhorse mounting.

Input: 115V, 3/8 HP, 5 Amps
No Load Speed: spindle 1,725 RPM, belt 1,350 FPM
Oscillation: 60/min.
Stroke: 3/4"
Belt Size: 4" x 24"
Table tilt: 0-48°
Ball bearing construction: Yes
Tool-free belt/spindle change: Yes
On-board accessory storage: Yes
Size: 23.9"L x 19.1"W x 19.3"H
Weight: 40 lbs.

Includes
sander bed assembly
5 sanding sleeves
4 drums (3/4", 1", 1-1/2", 2")
drum washers
hex key
table insert
throat plates
