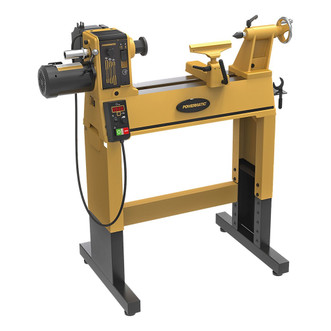

Powermatic 14" VS Wood Lathe

SKU: M656696 1792014AK
Write a Review
$3,596.00
SKU:
M656696 1792014AK
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

For maximum speed with minimum input, this lathe only requires a 115V, 1PH power source to deliver 230V, 3PH performance. Allows for 14" swing over the bed and 20" between centers which can be increased by using the optional 13" bed extension. More clearance is available for outboard turning by placing the sliding headstock and removeable tailstock at the end of the bed. Cast iron construction helps to reduce vibration when turning larger, rougher pieces. A magnetic control box shows digital indexing and spindle speed with 24 positive indexing positions. Adjusts from 34-46" so it's easy-to-use for students of all heights.

Motor: 1 HP
Motor Phase: 1
Motor Voltage: 115/230
Motor Amps: 3
Bed Construction: Cast Iron
Motor speed: 1,720 RPM
Distance Between Centers: 19-1/4"
Swing Over Bed: 14-1/4"
Variable Spindle speeds: 15-900, 30-1,800, 60-3,600 RPM
Spindle thread size: 1-1/4" x 8 TPI, RH threads
Spindle direction: Forward/reverse
Headstock spindle taper: #2 Morse
Hole through headstock spindle: 3/8" dia.
Indexing: 24 positions (15° workpiece rotations), positive locking
Faceplate diameter: 3"
Tailstock quill taper: #2 Morse
Hole through tailstock quill: 3/8" dia.
Tailstock quill travel: 4-1/4"
Tailstock quill thread: 5/8"-11
Overall Dimensions: 52"L x 24"W x 18"H
Weight: 183 lbs.

Includes
stand
8" toolrest
knockout rod
face plate
spur center
live center
tool caddy
wrench

Please specify voltage. 115V will be shipped if not specified.
