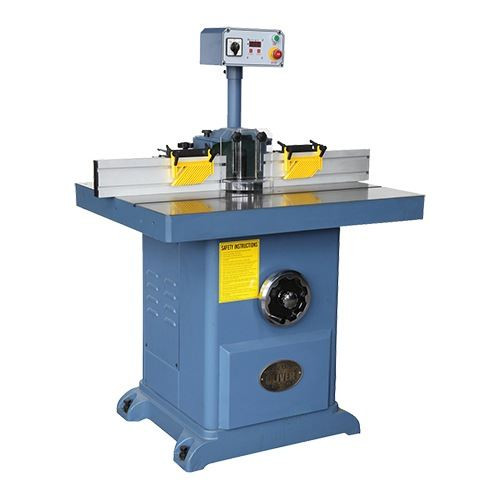

Oliver Shaper, 220V, 5HP, 1 Ph
OliverSKU: W615370 4705.001
- W615370 4705.001
- Ships direct from manufacturer. Lead times may vary.
Frequently Bought Together
Total Price:Add to Cart
Please choose options for all selected products
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at firstname.lastname@example.org.
- Massive cast iron precision ground table provides a solid work surface
- Cast iron base provides a steady platform
- 3/4" and 1-1/4" interchangeable spindles are included for added versatility
- Three spindle speeds allow more choices to produce a better finish
- Reversing spindle gives more options for each set-up
- Innovative dovetail design accurately raises and lowers the spindle
- Fence is independent and features micro adjustments for quick set-up
- Top mounted control panel includes a digital readout for spindle height
- Large hand wheel for quick spindle height adjustment
- Magnetic controls with emergency off switch for safer operation
- Powerful TEFC motor
Motor: 220V, 5HP, 1 Ph
Table Dimensions: 39"L x 31-1/2"W
Table Height: 36-1/2"
Vertical Spindle Travel: 4"
Spindle Direction: Reversible
Spindle Speed: 5,000, 7,000, 10,000 RPM
Maximum Tool Diameter: 7" Below Table, 8" Above Table
Spindle Diameter: 1-1/4" and 3/4" Interchangeable
Dust Port Diameter: 4"
Minimum CFM: 800
Footprint: 28-1/2"L x 24-3/4"W
Machine Dimensions: 39"L x 31"W x 45"H
Weight: 870 lbs.
