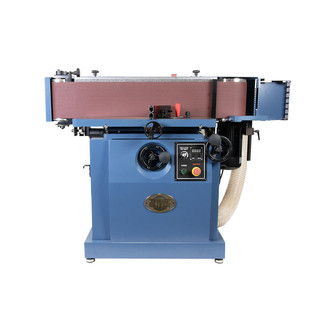

Oliver Edge Sander, 9" x 108", 230V

Description

Belt sander meticulously designed to meet your professional needs with a 108" belt. The smaller form factor, with heavy cast iron tables ensures exceptional stability and consistency. What truly sets this belt sander apart is its unparalleled versatility. With the ability to adjust both working tables up and down, and to angle the belt surface from 0° to 90° you have complete control over the sanding process. For curved material, the end table allows you to tackle contoured sanding applications with precision.

• Adjustable oscillation action for a superior finish
• Belt rotates from 0° for flat sanding to 90° and anywhere in between
• Working tables adjust up and down for complete use of belt
• End table allows contoured sanding
• Precision balanced for smooth operation
• Mfr.'s 1-year warranty

Table Material: Cast iron
Motor: 3HP, 1Ph 230V TEFC
Full Load Current Rating: 12.5A
Minimum Circuit Size Required: 15A
Power Switch Type: Magnetic power switch with emergency stop buttons
Connection Type: NEMA 6-15 plug with 6' AWG 14 power cord
Speed: 1,720 RPM
Efficiency / Power Factor: 81% / 95.68%
Power Transfer Mechanism: Direct drive
Bearing type: Permanently sealed ball bearing
Table Length: 32"
Table Width: 12"
Main Table Size: 12" x 32" x 1.5"
End Table Size: 12" x 12"
Main Table Working Height: 34" to 37"
End Table Working Height: 34" to 40"
Main Table Vertical Travel: 4"
Main Table Horizontal Travel: 1"
Contour Sanding Drum Radius: 8-1/2"
Belt Size: 9" x 108"
Oscillation Motor: 1/30 HP
Motor Type: DC Universal Motor
Power Requirement: 200V DC
Full Load Current Rating: 0.27A
Speed: 44 RPM
Oscillation Stroke: 5/8"
Sanding Belt Speed: 3,800 FPM
Sanding Belt Oscillation Speed OFF, 22-48 cycles/min.
Sanding Belt Drive Wheel: 8-1/2" Aluminum
Sanding Belt Idler: 4-3/4" Aluminum
Platen: Precision ground cast iron with graphite coated backing
Platen Dimensions: 35-1/4" x 10"
Table Tilt: Belt tilts 0° to 90°
Dust Port Diameter: 4"
Minimum CFM Required: 650 CFM
Sound Pressure Level (No Load) at 2' Distance: 100 dB
Overall Size: 56"L x 30"W x 44"H
Weight: 397 lbs.
