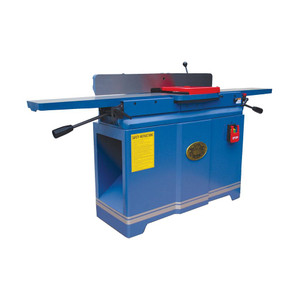

Oliver 6" Parallelogram Jointer, Helical Cutterhead

SKU: M615336 4225.201
Write a Review
$2,029.00
SKU:
M615336 4225.201
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
382
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Extra-long precision ground tables provide a stable work surface, while the parallelogram design provides smooth accurate cuts. Cast iron frame offers stable table support and the fully enclosed cabinet with 4" port offers superior dust management. CSA listed.

  • Helical cutter head with German-made carbide inserts
  • 4-sided cutting inserts are indexed and easy to replace
  • Lever controlled infeed and outfeed table adjustment allows quick set-up
  • Long precision ground fence tilts up to 135° with positive stops at 45° and 90°
  • Easy-read depth of cut gauge
  • Large lockable paddle switch for added safety
  • Powerful TEFC 1 HP single-phase motor
  • Ploy V-belt drive efficiently delivers power to the cutter head

Motor: 1Ph, 1HP, 115V/230V, Prewired 115V (1Ph, 13/6.5 Amp)
Infeed Table Travel: 1/2"
Cutterhead Speed: 5,500 RPM
Number of Knives (helical): 28 Inserts
Maximum Depth of Cut: 1/8"
Rabbeting Capacity: 1/2"
Dust Port Diameter: 4"
Fence Tilts: 45°, 90°, 135°
Positive Stops: 45° and 90°
Fence size: 29"L x 3-3/4"H
Table size: 60-3/4"L x 5-3/4"W
Table height: 31-1/2"
Weight: 240 lbs.

Includes 2 push blocks.
