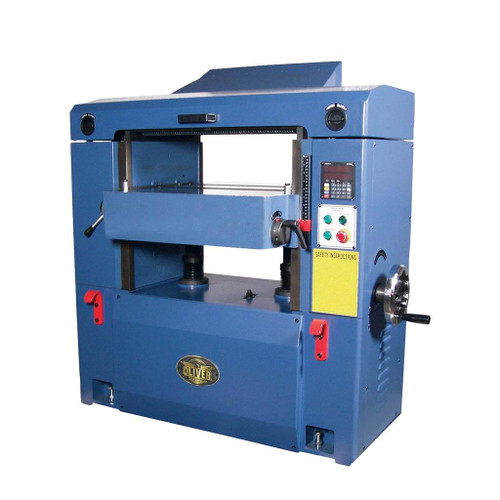

Oliver 25" Wood Planer, HCX Helical Cutterhead, 10 HP, 240V, 1PH

Description

Segmented infeed roller and chip breaker apply uniform pressure on uneven stock. Coupled with dual outfeed rollers, these keep your stock moving smoothly. Also features 3 feed speeds, a digital thickness scale for quick reference, and a powerful 10 HP, 3 PH motor.

• Massive cast iron construction throughout.
• Polished built-in table roller assists movement of rough stock.
• Magnetic controls with emergency off switch for safer operation.
• Hinged access to cutter head and feed rollers for quick set-up.
• Easy access to motor, drive train, and gearbox
• 5" dust chute easily handles chip removal.
• Oliver HCX Helical Cutterhead.
• Carbide inserts are indexed for quick changing.
• Allows up to a 1/4” cut.
• Power assisted table makes for quick, accurate, adjustments.
• Powerful TEFC motor

Motor: 10 HP, 240V, 1PH (49 Amps)
Maximum Stock Width: 25"
Maximum Stock Thickness: 9-1/4"
Minimum Stock Thickness: 1/4" Manual 9/32" Automatic
Minimum Stock Length: 10"
Dust Port Diameter: 5"
Minimum CFM Required: 900 CFM
Infeed Roller Diameter: 3"
Steel Outfeed Roller Diameter: 3" (x2)
Feed Speeds: 20, 25 and 30 FPM
Bed Rollers: 2, Adjustable
Table Size: 26" x 32"
Cutterhead Diameter: 3-3/8"
Cutterhead Speed: 4,800 RPM
Number of Knives Helical: 125
Table Support: 2-Column
Overall size: 46"L x 21"W X 56"H
Weight: 1,732 lbs.
