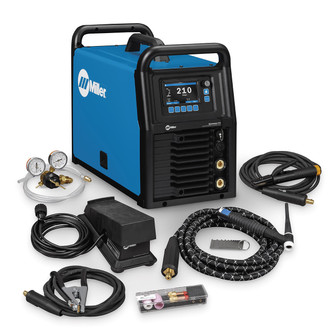

Miller Syncrowave 212 Tig Welder, 120/240V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers. For other product options, please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

This multiprocess welder features Auto-Set™, which automatically sets your welder to the proper parameters. Simply select the process, material type, material thickness, joint type, and tungsten size. Miller recommended machine parameters, gas flow rate, cup size, and filler rod diameter will also be provided.

• Pro-Set™ (TIG/stick manual modes) eliminates guesswork when setting weld parameters. Simply push the Pro-Set soft key or adjust the parameter until the adjustment indicator line turns green.
• AC balance (TIG) control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.
• AC frequency (TIG) controls the width of the arc cone and can improve directional control of the arc.
• Pulse (DC TIG). Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.
• DIG (stick) control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth-running electrodes, and increase the DIG setting for stiffer, more penetrating electrodes.

User-friendly interface features a 4.3" LCD display, ensures proper machine setup and parameter selection, and informative on-screen explanations and dynamic images to enhance the parameter selection process. Auto-Line Technology allows for any input voltage hookup with no manual linking.

• Hot Start™ adaptive control provides positive arc starts without sticking.
• Dedicated 4-pin receptacle for Spoolmate™ 150 spool gun.
• Multi-language capability (English/Spanish/French).
• Dedicated cooler power receptacle provides power for the Coolmate™ 1S.
• Cooler-On-Demand™ feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
• Manufacturer's 3-year warranty.

Processes: AC/DC TIG (GTAW) Pulsed DC TIG (GTAW-P) DC Stick (SMAW)
Material Thickness: Steel: 0.020" - 1/4", Aluminum: 0.020" - 1/4"
Weldable Metals: Aluminum, Steel, Stainless Steel
Input Voltage: 120-240V
Input Phase: 1-Phase
Input Hz: 50 / 60 Hz
Current Type: AC / DC
Amperage: 20–210
Size: 11.25" x 21.5"H x 17.5"
Weight: 54 lbs.

Includes
12.5' Weldcraft™ A-150 TIG torch with 50 mm flow thru Dinse-style connector (braided)
15' cable with electrode holder and Dinse-style connector
15' work cable with clamp
Heavy-duty wired foot control with 20' cord and 14-pin plug
Flow gauge regulator for argon/mix (10–50 scfh, barbed bonnet)
5' gas hose (single, reinforced pvc, 3/16")
Weldcraft gas lens accessory kit (air)
6.5' 120-volt power cord and 6.5' 240V power cord
Material thickness gauge
