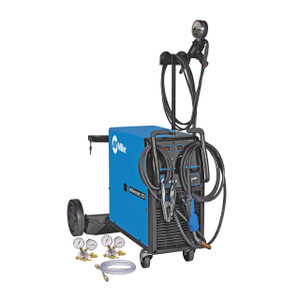

Miller Millermatic 252 MIG Welder, 230/460/575V

SKU: M567011 907322
Write a Review
$4,728.00
SKU:
M567011 907322
Availability:
Ships direct from manufacturer. Lead times may vary.
isVariation:
/multiple-variations/miller-millermatic-252-mig-welder/

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers. For other product options, please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Welds material from 22 gauge to 1/2 in thick in a single pass. Highest output in its class (250 A at 28 VDC) for welding longer on high-end applications.

miller welding resources for educators

Features

Large, Digital Front Panel with Built-in Digital Timers Menu
Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.

Auto Gun Detect™
Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun. Learn More

Push-Pull Gun Direct Connect
Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.

Angled, Dual-Gear Driven, Cast Aluminum Drive System
Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.

EZ-Change™ Low Cylinder Rack
Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.

EZ-Access™ Consumable Compartment and Parameter Chart.
Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.

Larger Work Area
Now with longer 15-ft M-25 gun.

Miller's True Blue® Warranty

Specifications

Material Thickness: Mild Steel 22 ga. (0.9 mm) - 1/2” (13 mm), Aluminum 14 ga. (1.9 mm) - 3/8” (9.5 mm)
Weldable Metals: Stainless Steel, Steel, Aluminum
Input Voltage: 220/230/240 V, 460/480 V, 575 V
Input Phase: 1-Phase
Input Hz: 60 Hz
Input Amperage: 42 A
Current Type: DC
Rated Output: 200 Amps at 28 VDC, 60% duty cycle,250 Amps at 28 VDC, 40% duty cycle
Max Open Circuit Voltage: 38 VDC
Amperage Range: 30 A - 300 A
Wire Feed Speed: 1.3 m/min - 17.8 m/min, 50 IPM - 700 IPM
Wire Diameter: Solid Steel 0.023” 0.045", Solid Steel 0.6 mm 1.2 mm, Stainless 0.023” 0.045", Stainless 0.6 mm 1.2 mm, Flux Cored 0.03” 0.045", Flux Cored 0.8 mm 1.2 mm
Spool Size: 12” (305 mm)
Portability: Running Gear / Cart (Standard)
Weld Output: CV
Overall size: 19"W x 30"H x 40"L
Weight: 205 lbs.

What's in the box

Includes
Millermatic® 252
15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
10 ft (3 m) industrial power cord
10 ft (3 m) work cable and clamp
Argon mix regulator/flow gauge and hose
Factory-installed lowered runningt gear/cylinder rack
.030/.035 in. reversibledual-groove drive rolls
Extra contact tips

Please specify voltage.
