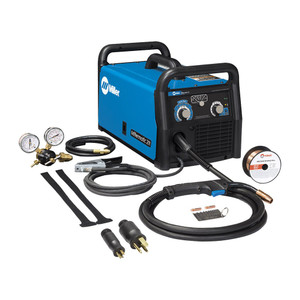

Miller Millermatic 211 Pro Welder

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

• Auto-Set™ features fast and easy predefined settings for multiple materials and processes to help you get welding quickly.
• Smooth-Start™ provides a smooth, spatter-free start.
• Multi-voltage plug (MVP™) allows connection to common 120- and 240-volt power receptacles without the use of any tools. Just choose the plug that fits the receptacleand connect to the power cord.
• Angled cast-aluminum drive system withcalibrated tension knob creates consistentfeeding and easy setup.
• Quick Select™ drive roll makes setup quicker by offering 3 grooves:2 for differentsize solid wire, and 1 for flux-cored wire.
• USB-enabledsoftware allows expandable machinecapabilities without requiring mechanicalmodifications. This ensures the investmentcontinues to produce over time, even asneeds evolve.
• Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch.
• Fan-On-Demand™ cooling system only operates when needed, reducing noise, energy use, and contaminants pulled though the machine.
• Manufacturer's 3-year warranty.

Applications: Automotive Welding, Fabrication, Welding Projects
Industries: Auto Repair, Construction, Fabrication
Amperage: 30 A - 230 A
Material Thickness: Aluminum 18 ga. 3/8", Mild Steel 24 ga. 3/8"
Weldable Metals: Aluminum, Stainless Steel, Steel
Current Type: DC
Rated Output: 120V: 110 A at 19.5 VDC, 60% duty cycle 240V: 160 A at 22.0 VDC, 60% duty cycle
Max Open Circuit Voltage: 57 VDC
Wire Feed Speed: 1.5 m/min - 15.2 m/min, 60 m/min - 600 m/min
Wire Diameter: Stainless 0.024" - 0.035", Solid Steel 0.024" - 0.035", Flux Cored 0.03" - 0.035"
Spool Size: 4" or 8"
Weld Output: CV
Input Voltage: 110/115/120V, 220/230/240V
Input Phase: 1-Phase
Size: 20"L x 9.75"W x 14.625"H
Weight: 35 lbs.

Includes
15' MDX™-100 MIG gun
15' Work cable with clamp
6.5' power cord and MVP™ adapter plugs for 120V and 240V
Argon and AR/CO2 mix regulator/flow gauge with hose
Two contact tips for .030" wire
Quick Select™ drive roll for .024" or .030/.035" solid wire, and .030/.035" flux cored wire
Material thickness gauge
Hook-and-loop cord wraps
