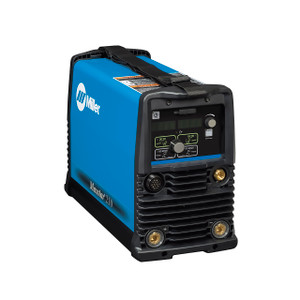

Miller Maxstar DX 210 Welder, 120-480V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

The perfect combination of sophisticated inverter technology and advanced features. Weighing only 38 pounds, the Maxstar 210 is an extremely versatile DC TIG/Stick power supply. Auto-postflow adjusts the length of postflow time based on the amperage setting, shielding your tungsten and eliminating the need to set the postflow time. Front panel memory card data port provides the ability to easily update software and expand product features. Sleep timer conserves electricity. This programmable feature will power down the machine if it sits idle for a specified time. Meter calibration allows digital meters to be calibrated for certification. Manufacturer's 3-year warranty.

• QuietPulse™ is activated by changing the waveshape for DC pulse welding, creating as lower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Blue Lightning™ is a high-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Lift-Arc™ provides DC arc initiation without the use of high frequency.
• Auto-Line™ Technology allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display.
• Wind Tunnel Technology™ protects internal electrical components from airborne contaminates, extending the product life.
• Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.

Processes: TIG (GTAW), TIG DC (GTAW-DC), Stick (SMAW)
Industries: Shipbuilding, Construction, Fabrication
Weldable Metals: Specialty Metals, Stainless Steel, Steel
Material Thickness: Steel 0.002" (0.05 mm) - 1/4" (6.4 mm)
Current Type: DC
Max Open Circuit Voltage: 80 VDC
Amperage Min: 1 A
Amperage Max: 210 A
Weld Output: CC
Input Voltage: 110/115/120V, 208V, 220/230/240V, 380/400V, 460/480V
Input Phase: 1-and 3-Phase
Input Hz: 50/60 Hz
Size: 19.5"L x 8.6"W x 13.6"H
Weight: 38 lbs.

Includes
8' primary cord
two 50 mm Dinse style connectors
adjustable shoulder strap
