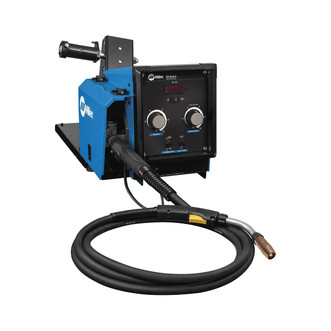

Miller 20 Series Wire Feeder, Digital, Q4015, Drive Roll Kit

SKU: M567132 951780001
Write a Review
M567132 951780001

Frequently Bought Together

Please choose options for all selected products


Trigger hold control allows operator to make long extended welds without having to hold gun trigger. Four gear-driven drive rolls offer smooth, positive, and accurate wire feed with long, uninterrupted service life. On-board burnback and motor ramp control offers unmatched starting and stopping performance on a variety of power sources to ensure positive arc starting performance. Robust 16-gauge sheet metal housing is less prone to damage. Parameter adjustments can be made by digital meter in weld cell or through remote voltage control. Adjustable run-in control for better arc-starting performance on a variety of wires.

Processes: Flux Cored (FCAW) MIG (GMAW)
Input Circuit Welding Rating: 24VAC, 3.5A, 50/60Hz
Wire Feed Speed: 75 IPM - 750 IPM
Wire Diameter: Flux Cored 0.035", 0.078"
Solid Wire: 0.023" - 0.078"
Unit size 12.375"W x 27.875"D x 16"H.
Weight 46 lbs.

BTB 400A Gun
.035/.045" dual-V drive rolls
AccuLock contact tips three .035", two .045"
