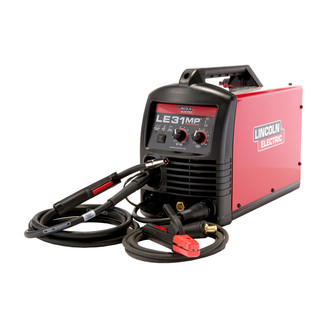

Lincoln LE31MP Multiprocess Welder

Description

The LE31MP is a multi-process welder that is lightweight and portable. It is an excellent choice for MIG, STICK, Spool Gun, Flux-Cored, or TIG welding. The intuitive user interface, easy setup, and full list of accessories permits welding in no time. Machine comes ready to MIG weld, Flux-Cored weld, and Stick weld.

• Fully adjustable drive system reduces the chance of wire tangling and crushing.
• Brass-to-brass gun connection enhances conductivity.
• Durable cast aluminum gear box delivers added drive torque and quiet operation.
• Easy-turn numeric drive tension indicator identifies optimized ranges for different wiretypes.
• Mfr.'s 3-year warranty.

Processes: Mig, Flux-Cored, Stick
Input Voltage: 110/115/120V
Input Current: 20A
Input Hertz: 60
Input Phase: 1
Mode Icon: CV
Output Range: 30-140A
Polarity: DC
Machines Maximum Weldable Thickness: 5/16"
Machines Minimum Weldable Thickness: 24 ga.
Welding Gun Cable Assembly: 10'
Work Cable Length: 10'
Input AC Voltage: 120
Maximum Wire Thickness: .035"
Minimum Wire Thickness: .025"
Wire Feed Duty Cycle: 20%
Size: 13.6" x 8.9" x 18.1"
Weight: 34.5 lbs.

Includes
Magnum® 100L Gun and 10' Cable Assembly
3 Contact Tips, .025"
3 Contact Tips, .035"
Gasless Nozzle
Gas Nozzle
Spindle Adapter for 8" dia. spools
Drive Roll for .025" - .035" Wire
Shield Gas Apparatus
Sample Spool of SuperArc®
Sample Spool of NR®-211-MP
Work Clamp with 10' Cable
Instruction Manual
Quick Start Guide
Electrode Holder with 10' Cable for Stick Welding

TIG torch and pedal, not included.
