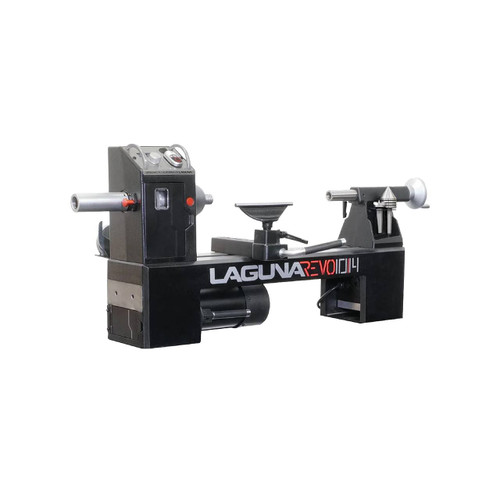

Laguna REVO 10/14 Wood Lathe, 110V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Compact in size but big on performance, this wood lathe is the perfect blend of innovation, control, and classic craftsmanship. Engineered for precision turning in tight spaces. Accessories are located in the rack on the back side of the bed behind the headstock. Standard 120V outlet under bed for adding your own LED light.

Motor: 3/4 HP, TEFC, 110-120V, 1 PH, 4A, 60 Hz
Speed (no load): 3,200 RPM
Speed Range High: 950 - 3,200 RPM
Speed Range Mid: 430 - 1,450 RPM
Speed Range Low: 250 - 850 RPM
Distance Between Centers: 14"
Swing Over Bed: 10"
Swing Over Banjo: 7.3"
Spindle Bore: 7/16"
Spindle Taper: MT2
Spindle Thread: 1" x 8 TPI
Front Bearing: 6006LLU
Rear Bearing: 6005LLU
Indexing: 24 positions with Lock
Inverter: PWM inverter
Drive belt: 5 Groove Poly-V Belt
Tail stock quill travel: 3-1/2"
Tail stock taper: MT2
Head stock taper: MT2
Headstock Bore: 7/16"
Tailstock Bore: 3/8"
Bed: Cast Iron
Head/tail Stock: Cast Iron
Legs or Base: Steel
Tool Rest: 1045 Steel
Tool Rest Contact Rod: 10mm (DIA) Hardened 1045 Steel
Banjo: Cast Iron
Floor to bed height: 7.08" no pads
Floor to Spindle Center: 12.09" no pads
Bed Length: 30.79"
Tool Rest Length: 6"
Tool Rest Post Dia.: 1"
Faceplate Dia.: 3-1/8"
Overall Size: 41.5"L x 18.8"W 16.8"H
Weight: 95 lbs.

Includes
3" Faceplate
Faceplate Wrench
Allen Wrenches
Knock Out Bar
Spur Drive Center Pin
