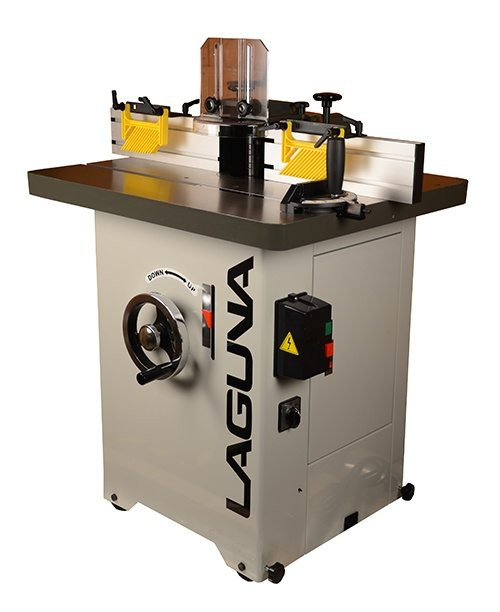

Laguna Compact Shaper 4 Speed 3 HP

SKU: W502143 MSHAP4SPD-3-0130
Write a Review
$3,270.00
SKU:
W502143 MSHAP4SPD-3-0130
Availability:
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

Description

Laguna  Impressive precision fence and wide-range RPM make this compact shaper ia a versatile investment for any pro. Compact shaper features 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration.

  • Spindle lock makes tool changes easy
  • Easy speed changes w/compression handle
  • Flat poly-groove belt transfers more power w/less vibration

Motor: 3HP, 1 Phase, 220V, 60 Hz
Table Size: 32" x 26-1/2"
Spindle Travel: 4"
Spindle Sizes: 3/4" & 1-1/4"
Router Collets: 1/4" & 1/2"
Capacity under Nut: 4"
Spindle Speeds: 4000, 6000, 8000, 10000 RPM
Forward/Reverse: Yes
Table Opening Diameter: 6-1/4"
Table Insert Opening Diameter: 2-1/2", 4-5/16"
Rotation: Forward/Reverse
Table T-Slot: Yes
Fence Size: 4-13/16" x 16"
Drive Belt: Flat Poly-Groove
Table Height From Floor: 34"
Dust Port Diameter: 4"
Micro Adjustment on Fence: Yes
Wheel System: Built In
Tool weight 450 lbs.

Includes fence, miter gauge, cutter guard & 2 featherboards.
