FUMEDOG

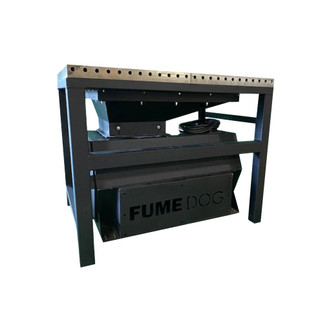

This 400 FPM Platen table provides fast and easy clamping anywhere on the top and sides of the table and is able to use third-party 5/8" or 16mm clamps and tooling. Tabletop is made of cast steel and CNC machined for flatness. Designed to prevent weld splatter from sticking. Friction fit for tools. Eliminates unwanted moving or shifting of parts. Designed for 1-2 shifts of grinding, stick, MIG, or TIG welding. Air stream filter cleaner extends filter life 5-6 times over traditional systems.
Construction: Steel
Finish: Powder Coat
Airflow: 400 FPM
Motor: 1.5 HP
Power: 120V, 1PH
Work Surface: 36" x 48"
Table Thickness: 5/8"
Hole Diameter: .625"
Static Load: 700 lbs.
