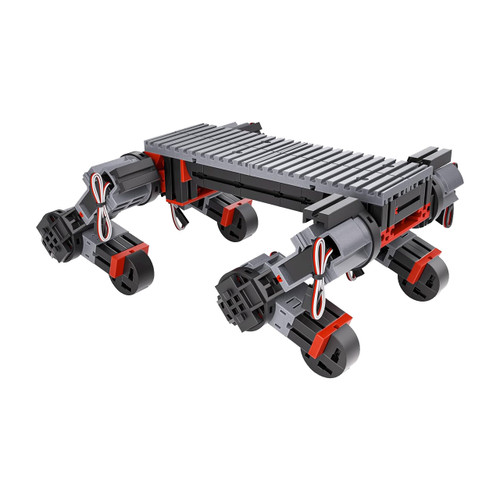

Fischertechnik Maker Kit Bionic Robot

Description

Create your own walking robot with the flexible base. With 8° of freedom, you can simulate movements such as walking and create the perfect basis for further robots. This model not only offers individual customization options, but also easy expansion by adding further components. The 3D data for brackets and connections to common developer boards enable seamless integration into your projects. For ages 14+.

Compatibility: Arduino UNO, Arduino UNO R4 WiFi, Arduino Mega, Raspberry Pi 3B, Raspberry Pi 4B, Raspberry Pi 5
Control System: Positive PWM Control (approx. 600 to 2400μs)
Operation Voltage Range: 4.8 V ~ 6.0 V
Operation Temperature Range: -4°F to 140°F
Dead Band Width: 2 μs
Moving Angle: 90° ±
Driver Type: MOS Drive
Motor Type: Cored Motor (CCW)
Potentiometer Type: Direct Drive
Signal Booster type: Digital
Gear Material: Metal Gear
Wire Length: 265 mm
Wire Gauge: 28 AWG
Plug Type: JR Plug
Black Wire: Negative
Red Wire: Positive
White Wire: Signal
Assembled Size: 12.59" x 3.14" x 9.05"
Weight: 2 lbs.

Includes
8 servo motors
161 pieces, total

Controller not included.
