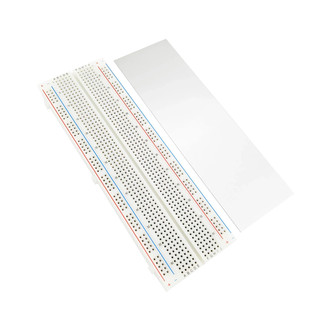

Electronix Express 830 Tie-Point Breadboard

Description

The 03MB830 is a solderless (plug-in) breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The 03MB830 has a 630 tie-point IC-circuit area plus four 50 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. Lead-Free and RoHS Compliant. Finished projects can be moved to the 0302PB10 solderable PC breadboard to make them permanent.

Material: White ABS body with black printed legend, color legend on distribution strips
Tie Points: 630 tie-point IC-circuits, two 100 tie-point distribution strips, 4 power rails
Contacts: Phosphor Bronze with Plated Nickel Finish
Rating: 50,000 insertions
Insertion Wire Size: 21 to 26 AWG, 0.016" to 0.028" dia.
Rating: 36V, 2 Amps
Attachment: Peel-off adhesive tape backing
Size: 6.5" x 2.2" x 0.3"

Qty.: 1

Includes
metal back plate
