EISCO Hydro-Electric Power Station

Description

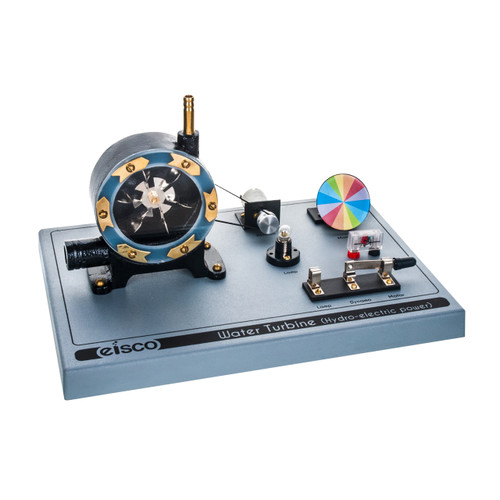

Hydro-electric power generator is composed of a turbine with transparent cover connected to a small motor to generate electricity. Ideal for classroom demonstrations, students can directly observe the process of converting water flow to electrical energy that occurs in hydro-electric power plants.

A brass chromed water wheel is mounted in a cast aluminum casing about 10cm in diameter. The water turbine is mounted on a plastic base together with a dynamo, motor, lamp, LED, and 2-way selecting switch. The apparatus is specially designed for operation under low water pressure, and performs extremely well with higher water pressure.

A switch selects delivering power to either a lamp or a Newton's Color Disc, which when spinning appears to turn white. The LED has constant power, but can be removed if you instead want to draw current from the output terminals via the 4mm leads.

Base: Molded ABS
Water Pressure: Low/High
Size: 13" x 9" x 7.5"
Weight: 4.3 lbs.

Includes
turbine
motor
dynamo
lamp
LED
2-way switch
Newton's color disc
25mm diameter outflow tubing
inlet tubing
adapter for large water taps
manual
