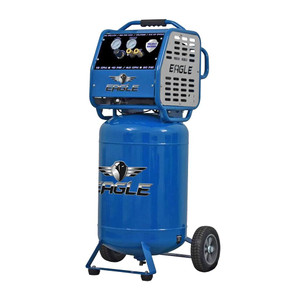

Eagle 20 Gallon Air Compressor

SKU: M944830 P3120H1-CC
Write a Review
M944830 P3120H1-CC
Cadmium and Chromium

Frequently Bought Together

Please choose options for all selected products


Rugged compressor with cast iron cylinders is able to work hard and last a long time. The V-design with individual, removeable cylinders and a pulley fan all help minimize vibration and improve cooling to extend compressor life. Sturdy pneumatic tires make handling and maneuvering easy. Secure metal belt guard protects operator and belt during operation and transportation.

  • Easy-view oil site gauge
  • Powder-coated tanks
  • High-efficiency reed valves
  • Manufacturer's 1-year limited warranty

Size: 20 Gallons
Style: Horizontal Portable
Source: Electric
Pump Type: Single Stage
Pump Drive: Belt
Style: Oil Lubed Belt Drive Single Stage
Construction: Cast Iron
Lubrication: Oil Lubricated
Horsepower: 3
Volt/Amp/Phase: 120/240/15/1
Motor RPM: 3,600
Bare Comp. RPM: 1,230
5.6 CFM's @ 100 PSI
Operating Pressure: 95-125 PSI
Maximum Pressure: 135 PSI
Size: 40"L x 18"W x 30"H
Weight: 160 lbs.

Air hoses sold separately.


  • California Residents WARNING: This product can expose you to chemicals including Cadmium and Chromium which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
