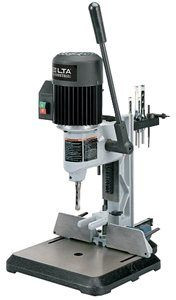

Delta 1/2 HP Bench Top Hollow Chisel Mortiser

Description

1/2 HP, single phase, induction motor. Large cast iron base with center through hole. Adjustable rack and pinion fence and rack with hold-down, and pinion head raising and lowering.

• Adjustable dovetail way on mortising head
• Multi-position feed lever
• Adjustable depth stop
• Gas-filled head stabilizer
• Mortising head column can be turned 180° & remounted for off-table mortising
• Chuck key/hex wrench for bit & chisel changing
• Easy, open access to drill chuck for bit changing
• Height attachment adds 1-3/4" of capacity under head

120V, 1/2 HP, 1 Phase, 1,725 Spindle Speed (rpm).
Chuck size 3/8".
Head travel 5".
Chisel to fence 3-3/4".
Under hold-down 3-3/4".
Table work surface 13-1/2"L x 16-1/4"W.
Fence size 2-15/16" x 13-5/8".
Tool size 13-1/2"L x 16-1/4"W x 30"H.
Tool weight 74 lbs.

Includes chuck and key, 4 mortising chisels & bits (1/4" x 1/4", 5/16" x 5/16", 3/8" x 3/8", 1/2" x 1/2"), tool and chisel holder, riser block, manual.
