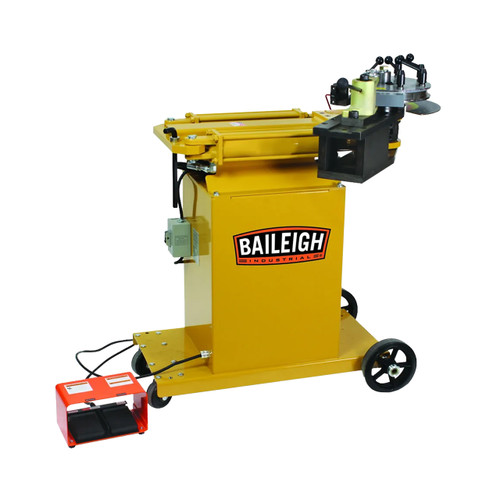

Baileigh Hydraulic Tube Bender, 110V

Description

Easy-to-read degree indicator helps you achieve correct bend degrees. Quick-release counter die system for hassle-free loading and unloading. Includes wheels on the base for smooth movement and storage. Rotary draw powered by low-pressure, industrial-grade hydraulic system.

• Runs on 110 volts of power.
• 8" centerline radius maximum.
• Bends with a capacity of 2" schedule 40 pipe and up to 2-1/2" tubing with a wall thickness of .120" mild steel.
• Manufacturer's 1-year parts warranty and lifetime technical support.

Power Supply: 115VAC, 20A, 1ph, 60Hz
Motor: 2HP (1.5kw) 115VAC, 18A, 1ph, 60Hz
Sound level: <70db
Maximum Center Line Radius (CLR): 8"
Minimum Center Line Radius (CLR): .5"
Minimum OD: .25"
Mild Steel Pipe (Schedule 40): 2"
Aluminum Pipe (Schedule 40): 2"
Stainless Steel Pipe (Schedule 40): 1.5"
Mild Steel Round Tube (Wall): 2.5" (.125)
Aluminum Round Tube (Wall): 2.5" (.156)
Stainless Steel Round Tube (Wall): 2.375" (.125)
Chromolly Round Tube (Wall): 2" (.125)
Mild Steel Solid Rod: 1.25"
Mild Steel Square Tube (Wall): 2" (.125)
Weight: 610 lbs.
Shipping Dimensions: 68" x 60" x 44"
Shipping Weight: 700 lbs.

Includes
wheels
