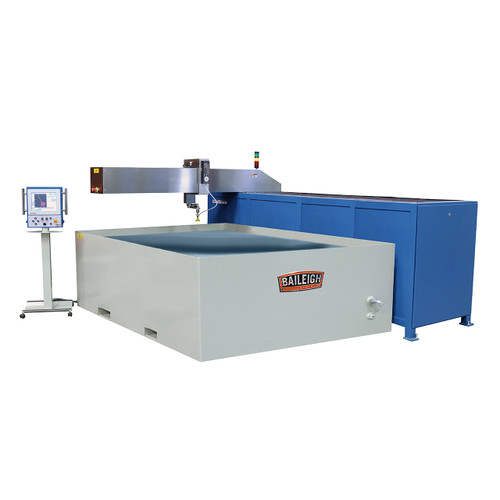

Baileigh CNC Water Jet Cutting Machine, 60" x 96", 460V

Description

Excellent work table accessibility on a machine built for the rigors of waterjet cutting. Cutting table and framework is laser cut and interlocked, then welded for strength and rigidity to ensure accuracy during the cutting process. Cantilever design allows for easier material loading and unloading. Offers smoother action on the axes with exclusion of moving parts. All axes ride on precision ball screws with square slide ways. All slide ways are covered and protected from water for long life. Gantry's smooth action allows for cutting glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper.

• Proprietary abrasive auto feed system is coupled with a 55,000psi Hammelmann direct drive pump for minimal maintenance.

• Includes an easy-to-use Windows-based stand-alone operator console that supports DXF.
• Includes BobCAD-Cam Express programming software to design or plot out a project on any computer and load the plasma table via USB drive.

• Manufacturer's 1-year warranty.

Input Power: 460V / 3-phase 60amp
Main Motor Power: 42 HP
Motor Output: 30 W
Air Pressure: 30 PSI
Cutting Accuracy: ±.001"
Filter Type: 2 Stage/2 Filter, 10 Micron and 1 Micron
Hopper Capacity: 250 lbs.
Max Orifice Size: 0.014"
Number Of Filters: 2
Pump Pressure: 55,000 psi
Abrasive Garnet Grade: 80
Abrasive Garnet Mass Flow Rate: .66lbs./min
Air Pressure Supply: 90psi (6 bar)
Air Flow Rate: 1cfm (0.03m3/min)
Water Pressure Supply: 30psi (2 bar)
Water Flow Rate: 3gpm (0.01m3/min)
Noise Level Jet In Water: 80dB
Noise Level Jet Out of Water: >120dB
Maximum Operating Temperature: 104°F (40°C)
CNC System: Windows Based
Software: BobCad Cam
Supported File Formats: DXF
CAM Post Processing Software: SheetCAM
Maximum Feed Rate Cutting: 315"/min
Maximum Feed Rate Traverse: 472"/min
X-Axis Travel: 98"
Y-Axis Travel: 59"
Z-Axis Travel: 6.75"
Accuracy: ±0.001"
Repeatability: ±0.001"
Shipping Dimensions: 153"L x46"W x 80"H, 112"L x 73"W x 36"H, 69"L x 44"W x 25"H
Weight: 5,600 lbs.
