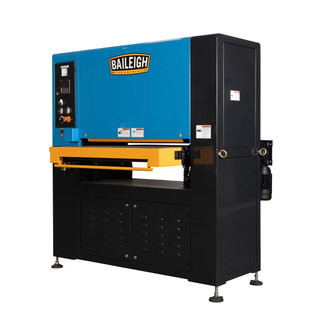

Baileigh 37" x 60" Belt Sander with Vacuum, 3PH, 230V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Small or lightweight parts tend to slide, lift, or chatter on a standard wide-belt sander table — which is why many shops still finish them by hand. The Baileigh WBS-37V solves that with a 5 HP vacuum conveyor that holds workpieces as small as 2" x 2" firmly in place. Auto sanding height adjustment, a digital readout, and 10 programmable presets streamline changeovers, while auto belt tracking keeps the abrasive centered.

• Handles material from 1/64" to 6" thick, finer than the non-vacuum WBS-37
• Auto belt tracking keeps the abrasive centered, reducing uneven wear and extending belt life
• UL 987-certified safety systems include door interlocks, E-stop, and a quick-stop abrasive belt e-brake
• Mfr.'s 1-year warranty

Abrasive Type: Belt
Belt Size: 9" x 48"
Belt Speed: 1,720 FPM
Conveyor Gear Box Ratio: 1/100
Conveyor Motor: 1/4 HP
Conveyor Speed: 2 - 16 FPM Variable
Dust Port Outside Diameter: 5"
Horse Power: 10
Infeed Table Length: 19.3"
Maximum Material Width: 37"
Minimum Material Length: 8"
Minimum Material Thickness: 1/64"
Motor Amps: 25
Motor HP: 10
Motor Phase: 3
Motor Voltage: 230
Number of Belt Speeds: 1
Dimensions: 65.9" x 52.4" x 73.8"
Weight: 1,720 lbs.
