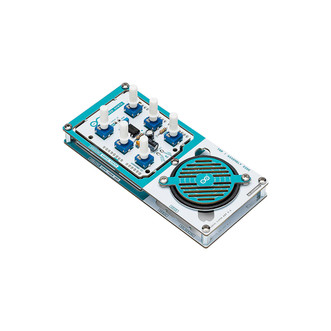

Arduino Make Your Own UNO Kit

Description

Arduino Make Your UNO kit is really the best way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music. A kit with all you need to learn how to solder by building your own Arduino UNO and wave synthesizer shield. Learn the basics of electronics by assembling manually your Arduino UNO, become familiar with soldering by mounting every single component, and then unleash your creativity with the only kit that becomes a synth!

Includes
Arduino Make Your UNO
Make Your UNO PCB
USB C Serial adapter Board
7 Resistors 1k Ohm
2 Resistors 10k Ohm
2 Resistors 1M Ohm
Diode (1N4007)
16MHz Crystal
4 Yellow LEDs
Green LED
Push-Button
MOSFET
LDO (3.3V)
LDO (5V)
3 Ceramic capacitors (22pF)
3 Electrolytic capacitors (47uF)
7 Polyester capacitors (100nF)
Socket for ATMega 328p
2 I/O Connectors
Connector header 6 pins
Barrel jack connector
ATmega 328p Microcontroller

Arduino Audio Synth
Audio Synth PCB
Resistor 100k Ohm
Resistor 10 Ohm
Audio amplifier (LM386)
Ceramic capacitors (47nF)
Electrolytic capacitors (47uF)
Electrolytic capacitors (220uF)
Polyester capacitor (100nF)
4 connectors pin header
6 potentiometer 10k Ohm with plastic knobs

Spare parts
2 Electrolytic capacitors (47uF)
2 Polyester capacitor (100nF)
2 Ceramic capacitors (22pF) 1 x Push-Button
Yellow LEDs
Green LED

Mechanical parts
5 Spacers 12mm
11 Spacers 6mm
5 screw nuts
2 screws 12mm
