XTool
The world's first 20W fiber and 20W diode laser engraver is powerful enough for deep engraving, embossing, reliefing, and cutting on metals, wood, acrylic, and 300 more materials. xToolArtmind AI and over 60,000 free projects in Atomm make designing easy and fun. The free XCS software makes all powerful features accessible for everyone to master.
Place materials on the conveyor and the machine will do the rest. The camera can automatically identify the shape of the materials with the xTool Creative Space software helps engrave patterns accurately to every piece.
Safe for anyone to use, this machine features an eye-protection cover, enclosed design with smart cover that drops the laser power to harmless light if opened during laser work, extraction fan, emergency stop button, and fire safety alarm.
3D Curve surface engraving automatically creates 3D models for curved surfaces to engrave any patterns flawlessly. Supports 90% cylinder engraving with RA2 Pro, the world's first 4-in-1 rotary that's suitable for most of the daily use of cylinders and spheres.
Touchable control panel stores 7GB of project files and independently controls the machine to engrave or cut without a computer or internet connection.
Laser Type: 20W Diode Laser + 20W Fiber Laser
Processing Mode: Laser Engraving, Laser Cutting
Supported Materials: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold
Working Area: 8.6" × 8.6" (220 mm × 220 mm)
Max. Working Speed: 10000mm/s
Max. Laser Cutting Capacity (Basswood): 15 mm in Multiple Passes
Max. Laser Cutting Capacity (Acrylic): 12 mm in Multiple Passes
Max. Processing Height: 145 mm
Max. Rotary Engraving Diameter: 145 mm
Supported Software: xTool Creative Space/Lightburn
Operating System: Android/iOS/iPad/Windows/macOS
Connection Method: USB/Wi-Fi/IP/Hotspot
Supported Files: SVG/DXF/JPG/JPEG/PNG/BMP/TIF
AImake Compatibility: Yes
Built-in Camera: 16 MP Smart Camera
Positioning Method: Camera Positioning
Focus Mode: Autofocus
Preview Method: Smart Camera Preview, High-speed Light Live Preview
Laser Spot Size: 0.08-0.1mm (20W Diode Laser)
Ranging Precision: 0.5 mm, Camera
Motion Accuracy: 0.00482 mm
Safety Certification: Class 4 Laser Safety
Max. Machine Input Power: 250W - 275W
Power Adapter Input Voltage: 100V - 240 V, AC 50/60 Hz
Product Size: 10.75" x 14.69" x 19.37" (273 mm × 373 mm × 492 mm)
Weight: 32.4 lbs. (14.7kg)

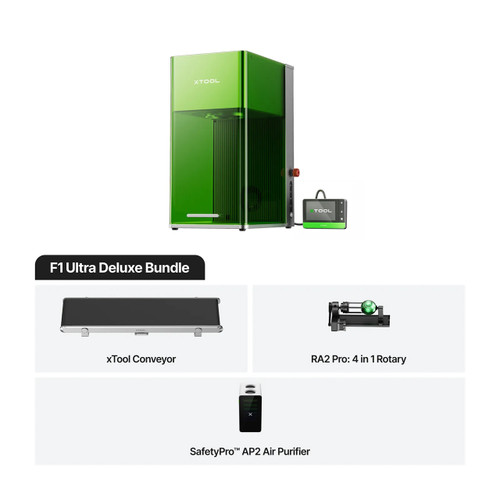

Includes
xTool Conveyor
RA2 Pro: 4 in 1 Rotary
SafetyPro AP2 Air Purifier
Touchscreen controller
Pipe
Power adapter
Power cable
USB cable
Slatted panel
Screwdriver
L-shaped positioning piece
Key
Lint-free cloth
Material pack
Quick start guide
Safety instructions
