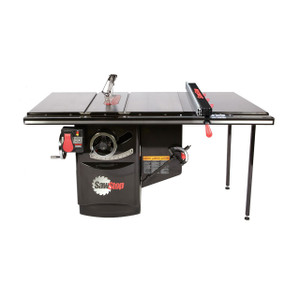

SawStop
Fence and rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The multi-function aluminum fence face provides the ability to use in 3 positions, with a dovetailed groove for attaching accessories and jigs. Larger, heavier tabletop provides an extensive cutting surface. Above the table, the included dust collection blade guard captures 99% of dust, debris, and contaminants. Below the table, it uses advanced shrouding around the blade.
SawStop's patented safety system stops a spinning blade on contact with skin within 5 milliseconds and drops below the table. The integrated Lock-Out Tag-Out switch cuts power to the saw so only authorized users have access. Interlock switches on the motor access panels prohibit saw operation if any doors are unlatched. The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working.

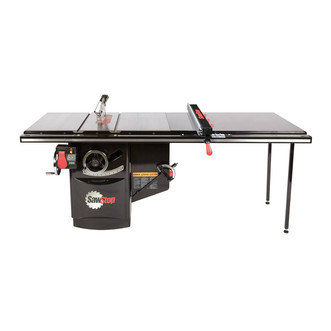

52" Rip Capacity: ICS51230-ATGI52: 52" T-Glide Advance Fence Assembly
Overall saw dimensions: 85-1/4"W x 36-1/2"D x 34"H
Motor configuration 2: ICS51230: 5 HP, 1 phase, 230V, 19.7A, 60Hz, TEFC
Saw body footprint: 20"W x 25"D (Cabinet)
Cast iron table: 24"W x 30"D
Cast iron table (with extension wings): 44"W x 30"D
Extension wings: 10"W x 30"D each
Extension table 52": 40"W x 30"D
Shipping weights with 52" fence systems: 787 lbs. (4 boxes)
Shipping dimensions (saw body only): 40"W x 40"D x 40"H
Ship weight (approx.): 640 lbs. (table saw only)
Assembled weights: with 52" fence systems: 685 lbs. (approx. weight)
Weight table saw only: 530 lbs.
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, right of blade- 52": 52"
Max. rip, left of blade: 12"
Dado diameter: 8" (requires dado brake cartridge and insert)
Dado max. width: 29/32"
Arbor diameter at blade: 5/8"
Arbor Runout: 0.001" Maximum allowable runout
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts - arbor b. static dissipative
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron with chrome handle
Riving knife/splitter thickness: 0.090" (2.3 mm)
Includes
2 Cast Iron Extension Wings
Miter Gauge
Dust Collection Blade Guard
Riving Knife
2 Blade Wrenches
Push Stick
10" Blade
Standard Lockdown Insert
Standard Brake Cartridge
Owner’s Manual
2 Hardware Packs
3mm Hex Key
5mm Hex Key
8mm Hex Key
Blade Spacing Adjustment Gauge
Ships in 4 boxes.
