SawStop

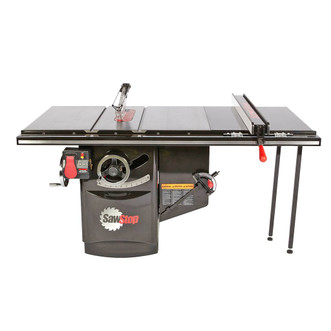

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 3 HP, 1 ph, 230V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
Protect Your Students
Unrivaled safety and innovation all delivered in a five-millisecond response that has saved thousands of fingers.
SawStop Saws Detect Contact With Skin
The blade carries a small electrical signal, which the safety system continually monitors. When skin contacts the blade, the signal changes because the human body is conductive. The change to the signal activates the safety system.
How It Works
1. Monitor and Detect
The blade carries a small electrical signal.
When skin contacts the blade, the signal changes because the human body is conductive.
The change to the signal activates the safety system.
2. Brake Activation
An aluminum brake springs into the spinning blade, stopping it in less than 5 milliseconds!
The blade's angular momentum drives it beneath the table, removing the risk of subsequent contact.
Power to the motor is shut off.
3. Reset
Resetting the saw yourself is easy. Simply inspect the blade (and change if damaged) and replace the brake cartridge, and your saw is operational. The entire process takes 90 seconds and you're back to work.
Motor: ICS31230: 3 HP, 1 phase, 230V, 13 A, 60Hz, TEFC
Model: Industrial 36" rip capacity & T-Glide Fence Assembly
Cabinet footprint: 20"W x 25"D
Cast iron table: 24"W x 30"D
Cast iron table (w/extension wings): 44"W x 30"D
Extension wings: 10"W x 30"D each
Extension table 36": 24"W x 30"D
Overall saw dimensions: 44"W x 34"D x 34"H
Overall saw dimensions: 69-1/4"W x 36-1/2"D x 34"H
Shipping dimensions (saw body only): 40"W x 40"D x 40"H
Weight table saw only: 530 lbs.
Weight w/36" fence system: 635 lbs.
Shipping weight (approx.): 640 lbs. (table saw only)
Blade: Prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, right of blade: 36-1/2" (w/optional 36" rails)
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8"Deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)
Dust collection blade guard (standard on 3 HP saws) (optional on 1.75 HP saws): polycarbonate, extends only 1-3/16" to right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" Diameter, cast iron w/chrome handle
Belts: 2 V-ribbed belts
Includes
2 Cast Iron Extension Wings
Miter Gauge
Dust Collection Blade Guard
Riving Knife
2 Blade Wrenches
Push Stick
10" Blade
Standard Brake Cartridge
Owner's Manual
2 Hardware Packs
3mm Hex Key
5mm Hex Key
8mm Hex Key
Blade Spacing Adjustment Gauge
