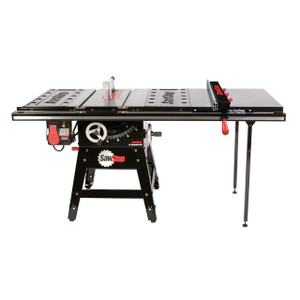

SawStop 10" Contractor Saw, 52" Advance Fence, 1.75HP, 120V

Description

The SawStop® Contractor Saw offers versatility and safety. Cast-iron table top creates a better-than-hybrid performance in the shop, and stability and mobility on the jobsite. It delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.

• Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw.
• SawStop Safety System stops on contact with skin in under 5 milliseconds and drops below the table to minimize injury.
• 52" Advance Fence is made of heavy-gauge steel for sure lockdown and reliably square cutting without deflection. The multi-function aluminum fence face provides the ability to use in 3 positions, with a dovetailed groove for attaching accessories and jigs.
• The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
• The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0. 010” maximum gap.

Motor Configuration: CNS175: 1.75HP, 120V, 14A
Blade: 40-T, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, left of blade (36" or 52" T-Glide Fence): 12"
Max. rip, right of blade (with 52" Fence): 52"

Dado diameter: 8" (requires dado brake cartridge and insert)
Dado max. width: 29/32" (23mm)
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-5/8"
Table behind blade (max. elevation): 7-1/8"
Arbor Runout: 0.001" Maximum allow able runout
Table flatness measured diagonally: 0.016" Maximum gap

Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife/splitter thickness: 0.090" (2.3 mm)
Blade guard: Standard polycarbonate, extends 1" right of blade
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 6" diameter, cast alum. with ABS handle
Belts: V-ribbed belt – static dissipative

Saw body footprint: 25-3/4"W x 27"D (with stand installed)
Overall saw dimensions: 85-1/4"W x 45"D x 34-3/4"H
Cast iron table: 44"W x 27"D
Extension wings: 12"W x 27"D Stamped Steel
Extension table 52": 40-1/8"W x 27"D
Shipping weights with 52" fence systems: 373 lbs. (4 boxes)
Shipping dimensions (saw body only): 35"W x 30"D x 20"H
Weight table saw only: 225 lbs.
Assembled weight w/52" fence: 335 lbs.

Includes
2 Steel Extension Wings
Miter Gauge
Micro Blade Guard
Riving Knife
2 Blade Wrenches
Push Stick
10" Blade
Standard Lockdown Insert
Standard Brake Cartridge
Owner’s Manual
Assembly Instructions
2 Hardware Packs
3mm Hex Key
5mm Hex Key
8mm hex Key
Blade Spacing Adjustment Gauge
