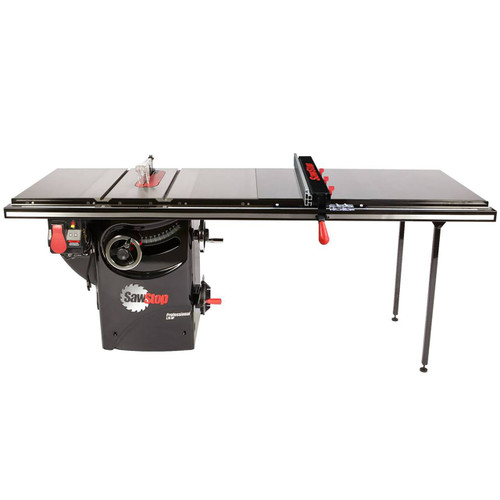

Fence and rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The multi-function aluminum fence face provides the ability to use in 3 positions, with a dovetailed groove for attaching accessories and jigs. The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.010” maximum gap.
SawStop's patented safety system stops a spinning blade on contact with skin within 5 milliseconds and drops below the table. The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working.
Motor Configuration: PCS175: 1.75HP, 120V, 14A
Blade: 40-T, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, left of blade: 12"
Max. rip, right of blade (with 52" Fence): 52"
Dado diameter: 8" (requires dado brake cartridge and insert)
Dado max. width: 29/32" (23mm)
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Arbor Runout: 0.001" Maximum allow able runout
Table flatness measured diagonally: 0.010" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife/splitter thickness: 0.090" (2.3 mm)
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 7" diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts – static dissipative
Saw body footprint: 19-3/8"W x 19-3/8"D (cabinet)
Overall saw dimensions: 85-1/4"W x 33"D x 34"H
Cast iron table: 20"W x 27"D
Extension wings: 12"W x 27"D
Extension table 52": 40-1/8"W x 27"D
Shipping weights with 52" fence systems: 503 lbs.
Shipping dimensions (saw body only): 42"W x 31"D x 30"H
Weight table saw only: 317 lbs.
Assembled weight with 52" fence: 431 lbs.
Includes
2 Cast Iron Extension Wings
Miter Gauge
Micro Blade Guard
Riving Knife
2 Blade Wrenches
Push Stick
10" Blade
Standard Lockdown Insert
Standard Brake Cartridge
Owner’s Manual
2 Hardware Packs
3mm Hex Key
5mm Hex Key
8mm hex Key
Blade Spacing Adjustment Gauge
