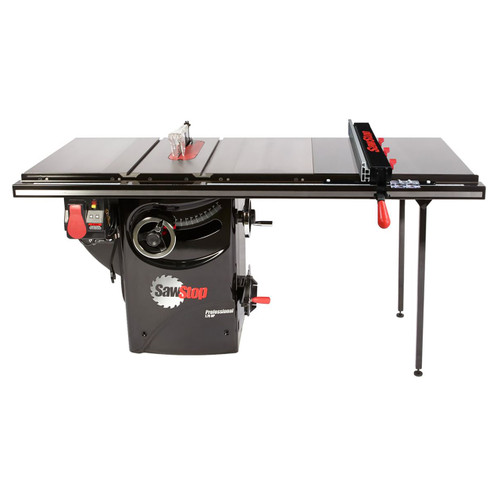

SawStop
Motor Configuration: PCS175: 1.75HP, 120V, 14A
Blade: 40-T, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, left of blade: 12"
Max. rip, right of blade (with 36" Fence): 36"
Dado diameter: 8" (requires dado brake cartridge and insert)
Dado max. width: 29/32" (23mm)
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Arbor Runout: 0.001" Maximum allow able runout
Table flatness measured diagonally: 0.010" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife/splitter thickness: 0.090" (2.3 mm)
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 7" diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts – static dissipative
Saw body footprint: 19-3/8"W x 19-3/8"D (cabinet)
Overall saw dimensions: 69-1/8"W x 33"D x 34"H
Cast iron table: 20"W x 27"D
Extension wings: 12"W x 27"D
Extension table 36": 23-3/4"W x 27"D
Shipping weights with 36" fence systems: 480 lbs.
Shipping dimensions (saw body only): 42"W x 31"D x 30"H
Weight table saw only: 317 lbs.
Assembled weight with 36" fence: 408 lbs.
Includes
2 Cast Iron Extension Wings
Miter Gauge
Micro Blade Guard
Riving Knife
2 Blade Wrenches
Push Stick
10" Blade
Standard Lockdown Insert
Standard Brake Cartridge
Owner’s Manual
2 Hardware Packs
3mm Hex Key
5mm Hex Key
8mm hex Key
Blade Spacing Adjustment Gauge
