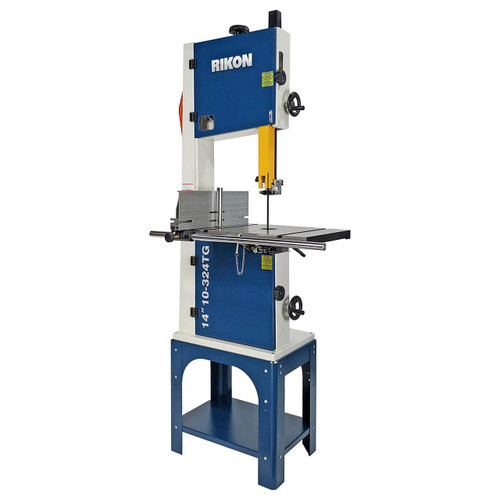

Rikon 14" 1-1/2 HP Band Saw & Base, 115/230V

Description

Toolless thumbscrew bearing locks means no tools needed to adjust guide bearings. Heavy-duty steel rail is 29" long. Rugged welded steel column and frame. Balanced cast aluminum drive wheels. Resaw capacity of 13". Dual blade speed ranges. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts.

• Quick release blade tension lever
• Large adjustment handles
• Hinged safety blade guard with sight window
• High work table height
• Base stand with storage shelf
• Manufacturer's 5-year warranty

Horsepower: 1-1/2 HP
Amps: 14/7
Motor: 115/230V, 60Hz, 1PH
Blade Speed: 1,445/2,950 FPM
Cutting capacity: 13-5/8"W x 13"H
Blade Width: 3/16" – 3/4"
Blade Length: 111"
Table Size: 21-1/2" x 15-3/4"
Left Tilt: -5°
Right Tilt: 45°
Miter Gauge T-Slot: (2) 3/4" x 3/8" T-Slot
Height to Floor: 39-1/2" (with stand)
Height to Base: 20"
Fence Size: 18-3/4" x 1-3/3" x 6"
Base Size: 21-5/8" x 14-3/4"
Dust Port: 1 @ 4"
Wheel and Table: Cast aluminum
Blade guide: Tool-less
Overall Size: 30"W x 25"D x 74-1/2"H
Weight: 218 lbs.

Includes
6" tall rip fence
re-saw bar
base

Please specify voltage. 115V will be shipped if not specified.
