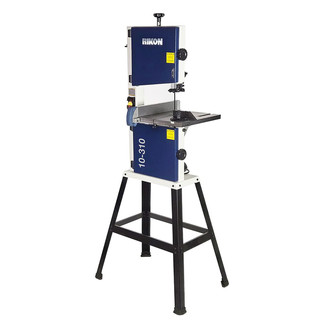

Rikon 10" 1/3HP Band Saw & Stand

Description

The ideal entry level bandsaw for woodworkers and hobbyists that do not require large cutting capacity and power for their projects, or have limited shop space for a larger size bandsaw. Includes features for easy operation – large cutting capacity, tilting 0-45° table, tool-less blade guides, quick-release blade tension lever, large blade tension knob, dust port for shop vacuum hookup, and safety paddle on/off switch.

Rugged welded steel column and frame
Spring loaded tool-less upper and lower blade guides
Machined cast iron table with 3/4" x 3/8" miter gauge ‘T’ slot
Quick-release blade tension system
Large blade tension hand wheel
Balanced drive wheels
2-1/2" O.D. dust port
Mfr.'s 5-year warranty

Motor Horsepower: 1/3 HP TEFC
Motor Amps: 3.5
Motor Volts: 115V, 60Hz
Blade Speed: 2,625 ft/min.
Cutting Capacity Height: 4-5/8"
Cutting Capacity Width: 9-5/8"
Blade Width: 1/8" – 1/2"
Blade Length: 70-1/2"
Quick Release Blade Tension Lever: Yes
Table Size: 11-3/4" x 11-3/4"
Table Left Tilt: -5°
Table Right Tilt: 45°
Table Miter Gauge: 3/4" x 3/8"
Table Height to Floor: 14-1/2" / 38-3/4"
Table Height to Base: 14-1/2"
Table Fence Size: 2" x 12-1/8"
Blade Guide Type: Tool-less
Table Trunnion Cast: Aluminum
Dust Port: 1 @ 2-1/2" O.D. / 2-1/4" I.D.
Overall Size: 25-3/4"W x 17-1/2"D x 59"H
Overall Base Size: 25-3/4" x 17-1/2"
Weight: 61.75 lbs.

Includes
steel stand
cast iron table
rip fence
miter gauge
