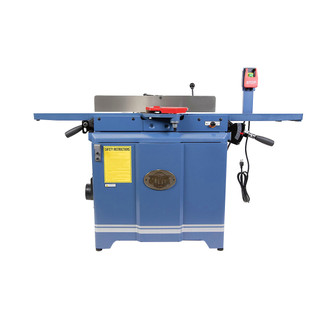

Oliver 6" Parallelogram Jointer, 1.5HP, 115/230V

Description

Motor: 1.5HP, 115V/230V, Prewired 115V (1Ph, 13/6.5 Amp)
Recommended circuit size: 20A @ 115V, 15A @ 230V
Material: Precision ground cast iron
Infeed Table Travel: 1/2"
Cutterhead Type: Helical
Cutterhead Diameter: 2-33/64"
Cutterhead Speed: 5,500 (RPM)
Number of Cutter Inserts: 28
Number of Rows of Cutter Inserts: 4
Cutter Insert Type: Four-sided, indexable carbide
Cutter Insert Diameters: 15mm x 15mm x 2.5mm
Cutter Blade Angle: 30°
Power Transfer Mechanism: Poly V-belt and pulleys
Bearing type: Permanently sealed ball bearing
Number of Knives (helical): 28 Inserts
Maximum Stock Width: 5-1/2"
Maximum Depth of Cut: 1/8"
Rabbeting Capacity: 1/2"
Minimum Stock Thickness: 3/4"
Minimum Stock Length: 10"
Dust Port Diameter: 4"
Table Dimensions: 60-3/4"L x 5-3/4"W
Table Height: 31-1/2"
Fence Dimensions: 29"L x 3-3/4"H
Fence Tilts: 45°, 90°, 135°
Positive Stops: 45° and 90°
Power Switch: Magnetic paddle
Connection: NEMA 5-15 Plug with 80" 14 AWG Cord
Footprint: 30-1/4"L x 11-7/8"W
Overall Size: 60-1/4"L x 19-1/4"W x 35-1/2"H
Weight: 240 lbs.

Includes
Assembly Tools
2 Push Blocks
Cutterhead Guard

Please specify voltage. 115V will be shipped if not specified.
