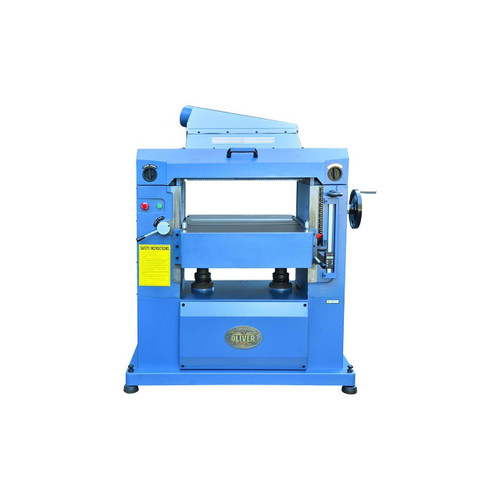

Oliver 22" Planer HCX Cutterhead, 10HP, 3PH, 220/440V

Description

Super-wide capacity can handle stock up to 22" wide, and remove up to 3/16" in one pass. Segmented infeed roller and chip breaker apply uniform pressure on uneven stock. Coupled with a driven outfeed roller, these keep your stock moving smoothly. Also features 2 feed speeds, a digital thickness scale for quick reference, and a powerful 10 HP, 3 PH motor.

• Massive cast iron construction throughout.
• Polished built-in table roller assists movement of rough stock.
• Magnetic controls with emergency off switch for safer operation.
• Hinged access to cutter head and feed rollers for quick set-up.
• Easy access to motor, drive train, and gearbox
• 5" dust chute easily handles chip removal.
• 3 V-belt drive smoothly transfers power to drive train and cutter head.

Motor: 3PH, 10HP, 220/440V
Maximum Stock Width: 22"
Maximum Stock Thickness: 9"
Minimum Stock Thickness: 1/8"
Minimum Stock Length: 10"
Dust Port Diameter: 5"
Minimum CFM Required: 900 CFM
Infeed Roller Diameter: 3"
Outfeed Roller Diameter: 3-5/16"
Feed Speeds: 20 and 30 FPM
Bed Rollers: 2, Adjustable
Table Size: 23-3/4" x 32-1/4"
Cutterhead Diameter: 3"
Cutterhead Speed: 5,000 RPM
Number of Knives: 156 Inserts
Number of Knives: (straight) 4
Footprint: 44"L x 22"W
Table Support: 2-Column
Overall size: 45"W x 32"D x 50"H
Weight: 1,340 lbs.
