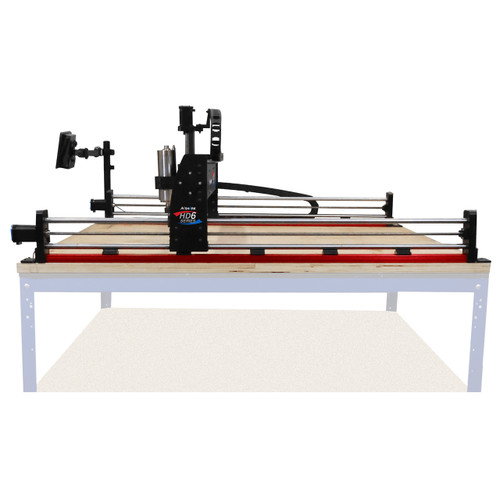

Next Wave SHARK HD644 CNC Machine, Standard Package

Description

This machine delivers powerful, next-level performance with a large cutting are for more complex projects. Heavy-duty table has linear gantry rails for stability. Gantry design is engineered for accuracy and reliability. The aluminum spindle cradle is designed for any spindle motor with an 80mm barrel diameter. Powerful 3HP water-cooled spindle includes digital control and 1/2" and 1/4" collets. The 10.1 Android pendant features a large screen, onboard memory, and full CNC control at your fingertips. The closed loop/encoded motors offer increased speeds with additional power and accuracy. Lead screws allow for higher cutting speeds. Precision-ground, vibration-dampening couplers ensure smoother operation and improved cut quality. Large drag chain accommodates both cables and spindle hoses for a cleaner, more organized workspace. The aluminum X-box offers improved access for tramming and maintenance. The 36V controller electronics deliver more power to the motors for speeds up to 1,000 IPM.

• Works best with Vectric's VCarve Pro (sold separately).
• Compatible with Aspire, Fusion 360, Cam Master, and more.
• Manufacturer's 2-year warranty.

Table dimensions: 63.9" x 63.7"
XYZ travel: 50" x 50" x 7"
Overall dimensions: 63.9W" x 63.7"L x 24-1/2"H
Weight: 215 lbs.

Includes
Virtual Zero Unlimited® (sku 21205 $149 value)
Ready2Control Software
3HP digitally controlled water cooled spindle (sku 20162 $999 value)
10.1" Android Pendant upgrade (sku 21260 $499 value)
Full closed loop motor system ( $999 value)
Circular touch plate (sku 20141 $99)
90° Carbide V-bit for sign carving
2 premium Hold down clamps
