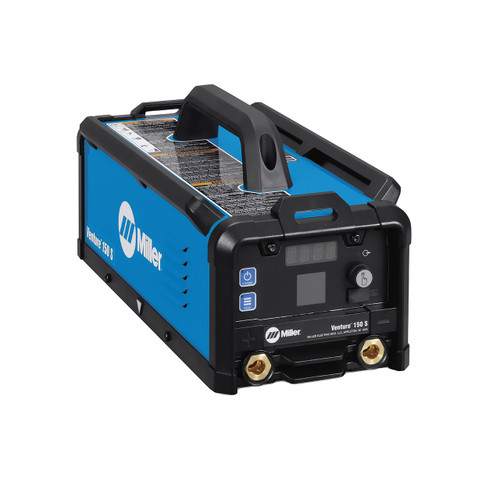

Miller Venture 150S Battery Welder Only

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

A lightweight and compact battery-powered Stick/TIG welder with swappable battery packs engineered specifically for welding.

• Compact design is light, convenient, and easy to carry.
• 100% duty cycle at maximum output.
• Superior Stick arc performance even on electrodes like E6010.
• Lift-Arc™ provides arc starting that minimizes contamination of the electrode without the use of high frequency.
• Thermal overload protection helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
• Low OCV Stick has a simple design that reduces the open-circuit voltage to 12-16 volts when the welding power source is not in use. Can be enabled or disabled.
• Stick-Stuck detects if the electrode is stuck to the work piece and turns the welding output off to safely and easily remove the electrode.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Hot Start™ Technology: Adaptive control provides positive arc starts without sticking.
• Mfr.'s 3-year Warranty.

Applications: Mobile Fabrication & MRO
Industries: Construction and Fabrication
Max Open-Circuit Voltage: 80 VDC
Battery Charging Options: Fast: 0-95% <30 mins., Standard: 0-95% <60 mins.
Weldable Metals: Stainless Steel, Steel
Current Type: DC
Weld Output: CC
Amperage Range: Stick: 20 - 150A, TIG: 10 - 160A
Material Thickness: Steel 0.020" (0.5 mm)-3/16"
Battery Lifespan: Over 1,000 charge cycles under typical use
TIG Arc Time Per Charge: 15.54 min. at 100A, 8.33 min. at 160A
Stick Electrode Consumption Per Charge:
13.45 3/32" 7018 at 80A
14.49 3/32" 6010 at 60A
8.021 1/8" 7018 at 110A
8.14 1/8" 6010 at 90A
5.79 1/8" 7018 at 150A
5.57 5/32" 6010 at 120A
Input Voltage Machine: 57.6 VDC
Hot Start™ Technology: Yes
Lift-Arc™: Yes
Fan-On-Demand™: Yes
Thermal Overload Protection: Yes
Low OCV Stick: Yes
Stick-Stuck: Yes
Size: 17.5"L x 8.4"W x 8.5"H
Weight: 11.5 lbs.

No welding accessories are included, sold separately.
