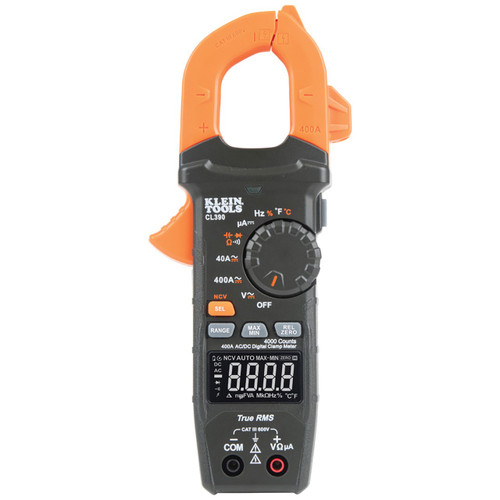

Klein Digital AC/DC Clamp Meter

Description

Measures AC/DC current and NCVT via clamp and AC/DC voltage. Measures resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test leads. Measures temperature with K-Type thermocouple probe. Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Non-contact voltage tester integrated into the clamp jaw. Test lead holder on side of clamp. High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions. Max/Min, Rel/Zero and Data Hold capability. Auto-power off after 10 minutes. Low battery indicator and easily accessible battery compartment.

Type: AC/DC Current TRMS Clamp
Application: Measures AC Current, NCVT, AC/DC, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, temperature with thermocouple
Material: ABS/Electronics
Auto-Power Off: Yes
Jaw Size: 1.6"
Drop Protection: 6.6'
Display: 4,000 Count Reverse Contrast LCD
Display Size: 1.57" x 0.8"
Voltage: 600V AC/DC
Current: 400 A AC
Ohms (Resistance): 20MO
AC Voltage: 600V
DC Voltage: 600V
DC Polarity Indicator: Yes
DC Micro-Amp: 200 µA
Accuracy: +/-1.0 + 3 digits
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Overall Size: 8.45"L x 3.5"W x 1.5"H
Weight: 11 oz.

Includes
3 AAA batteries
Test leads
Thermocouple
Instructions
Carrying case
